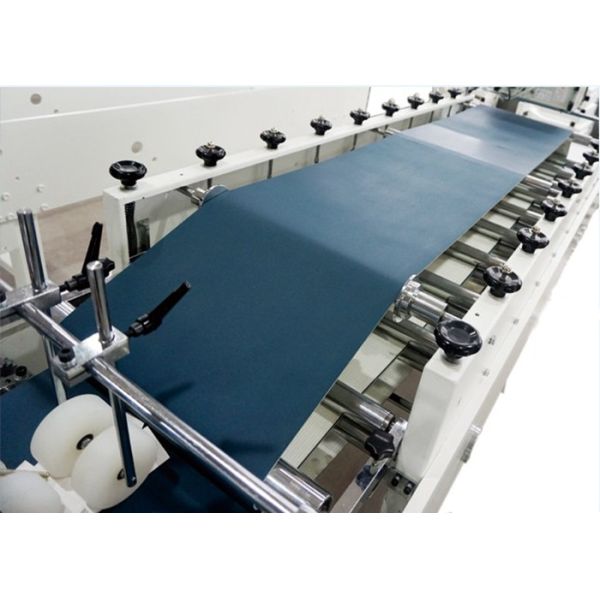

Compact Structure Carton Folding Gluing Machine For Lock Bottom Cardboard Production
Compact Structure Carton Folding Gluing Machine For Lock Bottom Cardboard Production
Compact Structure Carton Folding Gluing Machine For Lock Bottom Cardboard Production
Compact Structure Carton Folding Gluing Machine For Lock Bottom Cardboard Production
Compact Structure Carton Folding Gluing Machine For Lock Bottom Cardboard Production
Compact Structure Carton Folding Gluing Machine For Lock Bottom Cardboard Production
Specifications
Brand Name :
JCS
Model Number :
JSC-ZX-780S
Certification :
CE certificate
Place of Origin :
Made In China
MOQ :
One Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 Sets/Month
Delivery Time :
20 Working Days
Packaging Details :
Wrapped With Film
Automatic Grade :
Automatic
Condition :
New
Driven Type :
Electric
Warranty :
1 Year
Material :
Steel
Paper Thickness :
210~600 g/㎡
Way of Folding :
Two and four folding 180°
Weight :
2 T
Description

Automatic Lock Bottom Carton Cardboard Folding Gluing Making Machine

Summarize

JCS PACK Crash Lock Bottom Folding Gluing is the most competitive multi-functional folder gluer machine designed by our company independently. It can fold and glue many simple and complicated carton boxes. Its ease of use, attractive pricing and broad scope of the application of the folder gluer make a new leap in folder gluer machine field.It made indelible contributions to the field. It combines a variety of folder gluer

characteristics. It changes many disadvantages of crash lock bottom folder gluer machines, such
as complicated structure, difficult operating and high cost. It is convenient for the current packaging
and printing industry-competitive business variety, the less, the delivery of the tight schedule. It's
ideal packaging printing industry equipment.

Characterstic

1
Usage paper
180-800g/m2 Paperboard,N/F/E flute microwave corrugated cardboard
2
Box forming
Standard box, double sides box(optional)
3
Max. line speed
300m/min
4
Required power
4kw 380v
5
Weight
3000kg
6
Dimension
8600*1000*1400mm

Technical Datum

Model
Box Type
A Max
A Min
B Max
B Min
C Max
C Min
F Max
F Min
JCS-ZX-580S
Straight Line Box(I)
580
100
600
60
280
45
30
8
Pre-folfing Box(II)
580
150
600
60
280
70
30
8
Lock Bottom Box(III)
580
150
600
60
280
70
30
8
JCS-ZX-780S
Straight Line Box(I)
780
150
600
70
380
70
30
10
Pre-folfing Box(II)
780
200
600
70
380
100
30
10
Lock Bottom Box(III)
780
180
600
70
380
80
30
10
JCS-ZX-980S
Straight Line Box(I)
980
180
700
80
480
85
40
12
Pre-folfing Box(II)
980
220
700
80
480
110
40
12
Lock Bottom Box(III)
980
220
700
80
480
100
40
12
