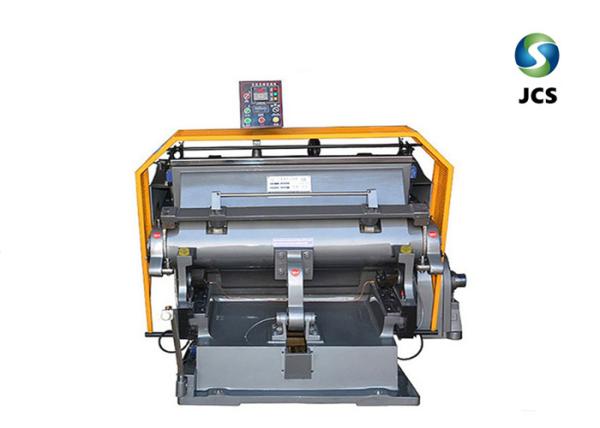

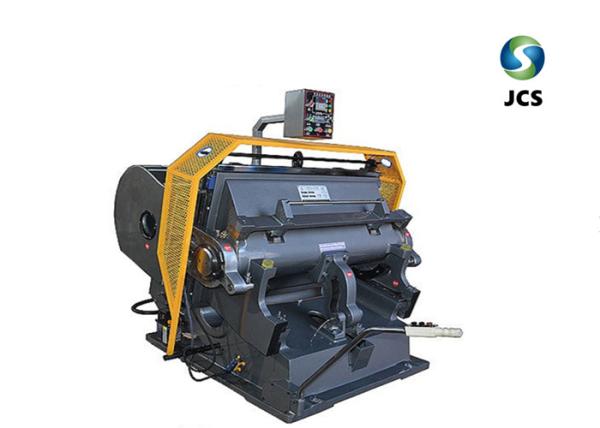

Manual Corrugated Box Die Cutting Machine High Strength Anti Friction
Manual Corrugated Box Die Cutting Machine High Strength Anti Friction
Manual Corrugated Box Die Cutting Machine High Strength Anti Friction
Manual Corrugated Box Die Cutting Machine High Strength Anti Friction
Specifications
Brand Name :
JCS
Model Number :
JCS-ML-1200
Certification :
CE Certification
Place of Origin :
Made In China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 Sets/Month
Delivery Time :
10 Days
Packaging Details :
Wrapped With Film
Function :
Manual paper creasing machine cardboard die cutting machine for carton
Keywords :
die cutting creasing machine
Condition :
New
Brand name :
JCS
Voltage :
380V 50hz
Warranty :
1 year
Description

Manual ML 1200 Die Cutting And Creasing Machine For Corrugated Box

Function

Paperboard die cutting machine is a special equipment for creasing and cutting ordinary cardboard, corrugated cardboard, plastic and leather ingeneral, applicable to printing packaging decoration and plastic industries. The machine is characterized by compact structure,fine workmanship, high precision and easy operation, etc.

Structure

1. Sliding bearings are made of high quality alloy cooper, thus to get effect of anti friction and shake reducing.

2. Flywheel is with big mloment of force and heavy pressure.

3. High strength due to one piece casting by using top-ranking material for machine frame.

4. Single plate electromagnetic clutch is sensitive and reliable.

5. With functions of single, continuous and opening dwell operation, dwell range is adjustable.

6. Operating position is reasonably arranged, moving-bed can be opened to its optimum.

7. Safety system is reliable.

Main features

1. This machine has four insurance four function.

2. Insurance: longmen insurance triangle insurance handle insurance electric automatic insurance, and thus more safe and reliable.

3. Function: single cut delay continuous count; The brake clutch is electric chuck braking clutch, has the brake sensitive insurance coefficient big safety performance is strong, etc.

4. The template plate frame adjustable board box convenient upper discharge board.

5. And with standard: manual injection fuel supply or the computer automatically on fuel supply configuration. We can manufacture variable frequency speed regulation.

6. The motor is mengniu brand.

Data

Model

Max Working

Area

Working speed

Creasing

length

Motor

Power

Weight

Overall Size

(L×W×H)

PYQ401C

750×520mm

28±2

(strokes/min)

<15m

2.2kw

2000kg

1260×1350×1280mm

PYQ203D

930×670mm

23±2

(strokes/min)

<25m

4.0kw

3000kg

1800×1600×1600mm

ML1100

1100×800mm

20±2

(strokes/min)

<32m

5.5kw

4500kg

1900×1800×1700mm

ML1200

1200×830mm

20±2

(strokes/min)

<35m

5.5kw

4800kg

1900×2000×1700 mm

ML1300

1300×920mm

18±2

(strokes/min)

<40m

7.5kw

6000kg

2000×2400×1800 mm

ML1400

1400×1000mm

18±2

(strokes/min)

<45m

7.5kw

6500kg

2000×2450×1900 mm

ML1500

1500×1050mm

18±2

(strokes/min)

<45m

7.5kw

7000kg

2000×2500×1930 mm

ML1600

1600×1250mm

16±2

(strokes/min)

<50m

11kw

11000kg

2170×2560×2130 mm

ML1800

1800×1300mm

16±2

(strokes/min)

<62m

15kw

13500kg

2240×2800×2230 mm

ML2000

2000×1450mm

16±2

(strokes/min)

<68m

15kw

14800kg

2300×2900×2306 mm
