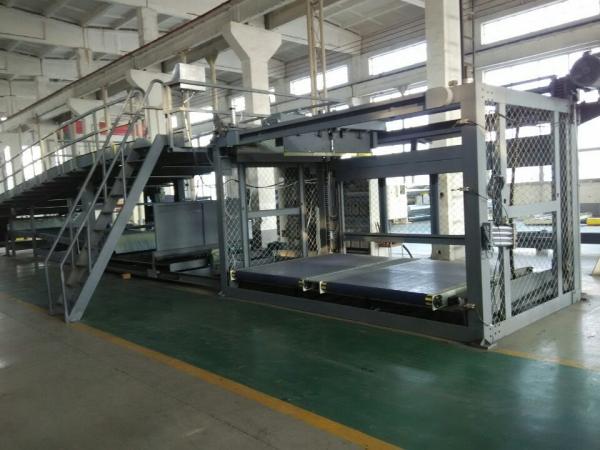

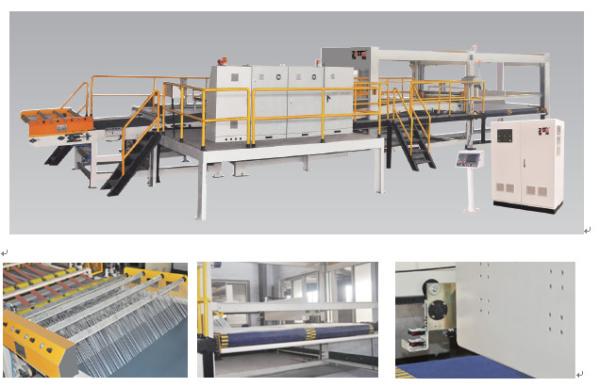

Dpack corrugator Professional Automatic Stacking Machine 500-3600m Stack Board Length corrugated carton production line
Dpack corrugator Professional Automatic Stacking Machine 500-3600m Stack Board Length corrugated carton production line
Dpack corrugator Professional Automatic Stacking Machine 500-3600m Stack Board Length corrugated carton production line
Dpack corrugator Professional Automatic Stacking Machine 500-3600m Stack Board Length corrugated carton production line
Specifications
Brand Name :
Dpack
Model Number :
CS-250P
Certification :
IOS9001
Place of Origin :
China Hebei Dongguang
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1 Set/ Month
Delivery Time :
According To Product
Packaging Details :
Wooden case or wrapping film
Stack board height :
1800mm
Stack board length :
500-3600m
Stacking speed :
200m/min
DIMENSIONS L x W x H (mm) :
17000×7500×3250
Description

FUNCTION

NC Up & Down Stacker can finish the piling, batching, stacking, lateral ejecting cycling procedure automatically. The unique design of end delivery section with the hangling basket lateral ejection structure balance to each other, synchro-lifting, shorten the batch change time, reduce the power consumption. It is suitable for high speed corrugated cardboard production line.

Features:

Stack board height: 1800mm

Stack board length: 500-3600m,

Stacking speed: 200m/min

Adopt high quality industrial computer and high performance plc, the automatic control system have high operating speed and steady function.

The control system could stock 999 orders, achieve automatic or manual order changing; the communication interface to be prepared for connecting the pms to achieve automatic stacker changing and order management.

It has 6 sections of transportation part. Automatic counting, automatic order changing and neat stacking.

The first transportation section have air draft device. Four rows of steel pressing bar to be controlled by independent pneumatic. To assure the board to be neat stacking in different speed and cutting length.

The transporting belt to be controlled by converter motor, to assure the board to be transported steady and counting accurate. The transporting speed is synchronous with the whole production line.

MODEL-WIDTH-SPEED

DIMENSIONS

L x W x H (mm)

WEIGHT

(T)

POWER

(KW)
NCDM-LMD-1800-200 17000×7500×3250 17 30

SPECIFICATIONS

Item Description
Max. Slitting Width 2200 mm
Max Speed 200 m/min
Stacking Height 1800 mm
Stacking Length 3600 mm

NC Servo Down Stacker
Item Main electrical parts Qty Brand
1 11 KW Converter + Brake Resistance + PG Card 1 Toshiba, Japan
2 4 KW Converter 7 Toshiba, Japan
3 Servo Drive and Motor 1 Delta, Taiwan
4 Q-S401 PLC 1 Fatec, Taiwan
5 Q-S402 PLC 1 Fatec, Taiwan
6 Q-S045 PLC 2 Fatec, Taiwan
7 Q-S203 PLC 1 Fatec, Taiwan
8 Q-S082 PLC 1 Fatec, Taiwan
9 Q-S25A PLC 1 Fatec, Taiwan
10 10.4" Human-Computer Interface 1 Kadar, China
11 3P 75A Air Switch 1 Schneider, France
12 3P 20A Air Switch 2 Schneider, France
13 3P 30A Air Switch 1 Schneider, France
14 3P 40A Air Switch 1 Schneider, France
15 3P 15A Air Switch 1 Schneider, France
16 2P 30A Air Switch 1 Schneider, France
17 Contactor LCID40 1 Schneider, France
18 Contactor LCID09 3 Schneider, France
19 Power Supply S-100-24 2 Mingwei, Taiwan
20 Power Supply D35 1 Mingwei, Taiwan
21 3 Phase AC 415V/380V 1.5KW Converter 1 Toshiba, Japan
22 AC 415V/200V 1.0KW Control Converter 1 Inovance, China
23 MY2-DC24V Relay 32 Omron, Japan
24 Encoder E-004B 4 Nemicon, Japan
25 Encoder E-099 1 Nemicon, Japan
26 Encoder E-004A 4 Nemicon, Japan
27 Optoelectronic Switch E-069 3 Fotec, Taiwan
28 Optoelectronic Switch E-035A 2 Omron, Japan
29 Optoelectronic Switch E-023C 3 Omron, Japan
30 Emergency stop with spring 1 Schneider, France
31 XCE-145 Stroke switch 6 Schneider, France
32 Column operation box 1 Kadar, China
33 Lifting platform button box 1 Kadar, China
34 22 reset button 10 Schneider, France
35 22 Indicator light 10 Schneider, France
36 Emergency stop 3 Schneider, France
37 3 color alarm lamp 1 Mack, Taiwan
38 Red alarm lamp 1 Mack, Taiwan
39 Alarm bell MS-190 1 Mack, Taiwan
40 Reset switch with lamp DC24V 3 Schneider, France
41 3 section reset button 2 Schneider, France
42 Epoxy panel 1 Kadar, China
43 Drive cabinent 1900 x 1500 x 600 1 Kadar, China
44 Column operation box 1 Kadar, China
45 Cable and accessories 1 Kadar, China
46 VFD Motor 1 Shandong, China
47 Pneumatic system 　 SMC, Japan
48 Basket lifting servo motor / servo drive 1 Inovance, China
49 Synchronous chain 15 Songhua, China
50 Conveying belt 4 Highten, China
51 Conveying platform servo motor and servo drive 1 Shuanglian, China
52 Module belt Ammeraal, Demark
53 Distributor car motor 1 Realland, China
54 Distributor car controller 1 Schneider, France
