Dpack corrugated Automatic Corrugated Cardboard Carton Board Box Stacking Machines 1800mm Stack Board Height
Dpack corrugated Automatic Corrugated Cardboard Carton Board Box Stacking Machines 1800mm Stack Board Height
Specifications
Brand Name :
DPACK
Certification :
IOS9001
Place of Origin :
China Hebei Dongguang
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Delivery Time :
According To Product
Packaging Details :
Wooden case or wrapping film
Supply Ability :
1 Set/ Month
MODEL-WIDTH-SPEED :
NCDM-LMD-1800-200
DIMENSIONS L x W x H (mm) :
17000×7500×3250
WEIGHT (T) :
17
POWER (KW) :
30
Max. Slitting Width :
2200 mm
Stacking Height :
1800 mm
Stacking Length :
3600 mm
Description

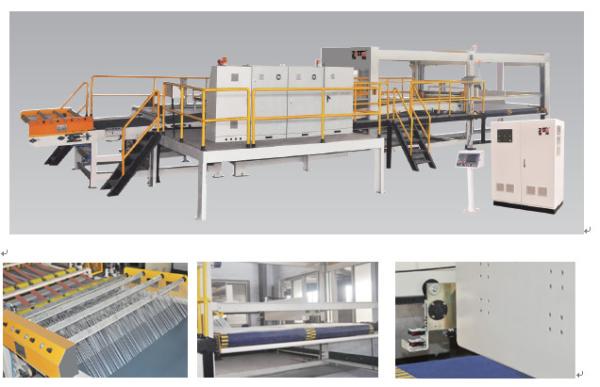

NC Basket Down Stacker

FUNCTION

NC Up & Down Stacker can finish the piling, batching, stacking, lateral ejecting cycling procedure automatically. The unique design of end delivery section with the hangling basket lateral ejection structure balance to each other, synchro-lifting, shorten the batch change time, reduce the power consumption. It is suitable for high speed corrugated cardboard production line.

Features:

Stack board height: 1800mm

Stack board length: 500-3600m,

Stacking speed: 200m/min

Adopt high quality industrial computer and high performance plc, the automatic control system have high operating speed and steady function.

The control system could stock 999 orders, achieve automatic or manual order changing; the communication interface to be prepared for connecting the pms to achieve automatic stacker changing and order management.

It has 6 sections of transportation part. Automatic counting, automatic order changing and neat stacking.

The first transportation section have air draft device. Four rows of steel pressing bar to be controlled by independent pneumatic. To assure the board to be neat stacking in different speed and cutting length.

The transporting belt to be controlled by converter motor, to assure the board to be transported steady and counting accurate. The transporting speed is synchronous with the whole production line.

MODEL-WIDTH-SPEED

DIMENSIONS

L x W x H (mm)

WEIGHT

(T)

POWER

(KW)
NCDM-LMD-1800-200 17000×7500×3250 17 30

SPECIFICATIONS

Item Description
Max. Slitting Width 2200 mm
Max Speed 200 m/min
Stacking Height 1800 mm
Stacking Length 3600 mm
