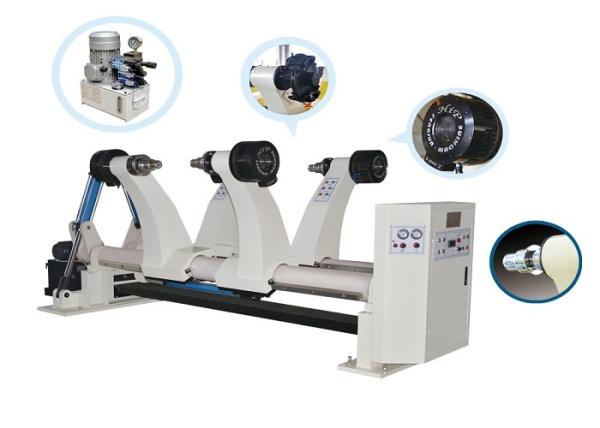

Dpack corrugated Fully Automatic RS-1500H Hydraulic Mill Roll Stand , Paper Roll Stand With Multipoint Brake
Dpack corrugated Fully Automatic RS-1500H Hydraulic Mill Roll Stand , Paper Roll Stand With Multipoint Brake
Specifications
Brand Name :
DPACK
Model Number :
RS-1500H
Certification :
IOS9001
Place of Origin :
China Hebei Dongguang
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, L/C
Delivery Time :
According To Product
Packaging Details :
Wooden case or wrapping film
Supply Ability :
15 Sets/Month
Automatic grade :
Automatic
Speed :
150-220m/min
Working width :
1400-2500mm
Max clamping diameter :
1500mm
Brake :
Two piont or multipoint brake
After-sales service provided :
Lifetime tracking service.
Description

RS-1500H Hydraulic Mill Roll Stand, Material CastI Iron,Has Multipoint Brake

RS-1500H Hydraulic Mill Roll Stand

Automatic level Fully automatic Working width 1400-2500mm
Speed 150-220m/min Material Cast iron
Drive type Electric, Hydraulic Voltage Determined according to client’s voltage
Weight 1800 type 3.8T 2200 type 4T Size

4450 × 1600 × 1650 (length * width *height) 1800type

4850 × 1600 × 1650 (length * width * height) 2200 type
Power type 4.0kw Tension control Manual operation, Automatic
Use for 3/5/7 ply Maximum support weight 3T
Maximum paper roll size 1500mm Color RAL1013
Packing type Overall packing Certification IOS9001

Raw Materials​ and Outsourcing Standard Parts

Name Brand Material Origin
Both sides of the wall board, arm clamping Q235 steel plate, HT200 casting Hebei China
Support spindle High quality thick wall seamless steel pipe Chengdu China
Main beam connection channel steel Anshan Iron and Steel Group

20 # steel

Width 300mm

 Anshan China
Hydraulic pressure station Tianyuan hydraulic pressure Shandong zaozhuang

Hydraulic cylinder
Hydraulic high pressure pip
Magnetic valve
Air cylinder Tianyuan Shandong zaozhuang

Pneumatic component

 AIRTAC Taiwan

Electric appliance

CHINT ABB or

Schneider

 Zhejiang,China,European brands
Bearing Harbin Harbin etc

Hydraulic mill roll stand arm :

Dpack corrugated Fully Automatic RS-1500H Hydraulic Mill Roll Stand , Paper Roll Stand With Multipoint Brake

Hydraulic mill roll stand side face:

Dpack corrugated Fully Automatic RS-1500H Hydraulic Mill Roll Stand , Paper Roll Stand With Multipoint Brake

Arm down:

Dpack corrugated Fully Automatic RS-1500H Hydraulic Mill Roll Stand , Paper Roll Stand With Multipoint Brake

Upward view:

Dpack corrugated Fully Automatic RS-1500H Hydraulic Mill Roll Stand , Paper Roll Stand With Multipoint Brake

Multi-point brake serrated chuck:

Dpack corrugated Fully Automatic RS-1500H Hydraulic Mill Roll Stand , Paper Roll Stand With Multipoint Brake

When they working:

Dpack corrugated Fully Automatic RS-1500H Hydraulic Mill Roll Stand , Paper Roll Stand With Multipoint Brake

Characteristic

*Symmetry structure could install two bundles real paper at the same time, and change the paper without any stop.

*Adopt hydraulic drive that could make the real paper lift-lower, clamp and release and move.

*Adopt pneumatic strain to adJiust the real paper.

*Expanding clips design.

*Tension control by pneumatic brake system, manual controlled and also can be controlled by splicer.

Usage:

*The machine is used to set the raw paper up and fixed in the air, the machine that supplies raw paper to production.

*Hydraulic control of the lifting and lowering, clamping and releasing, right-left movement.

*Pneumatic control of the web tension.Expand chuck or tooth chuck is optional.

*Motor name:three-phase asynchronous motor

*Motor use:hydraulic pressure station​

Raw materials and purchase in parts:

*Stand main bearing adopt:High quality thick-walled seamless steel pipe. Origin: Chengdu

*Two side wall plates and arms adopt: Q235G/HT250 casting Origin: Hebei

*Main beam like channel steel: 280mm Origin: An steel

*Bearing:made in Ha, Wa , Luo .

*Electrical device:made in Chint, ZheJiiang.

*Hydraulic: Tianyuan Origin: Zaozhuang, Shandong
