Dpack corrugated High Precision Hydraulic Shaftless Mill Roll Stand 1400-2500mm Width corrugating plant
Dpack corrugated High Precision Hydraulic Shaftless Mill Roll Stand 1400-2500mm Width corrugating plant
Specifications
Brand Name :
Dpack
Model Number :
RS-1500H
Certification :
IOS9001
Place of Origin :
China Hebei Dongguang
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
15 Sets/Month
Delivery Time :
According To Product
Packaging Details :
Wooden case or wrapping film
Model :
RS-1500H
Width :
1400-2500mm
Min. diameter of the original paper :
350mm
Description

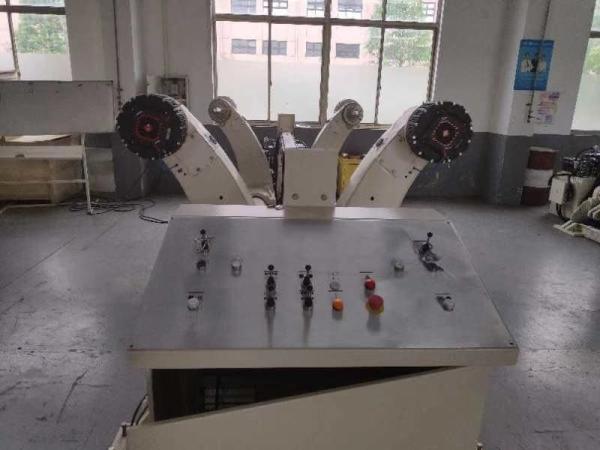

Hydraulic mill roll stand RS-1500H

Machine overview:

The machine is a machine designed to set up and fix the original paper in the air and provide the original paper for production.

* 2 rolls of paper can be installed at the same time, and the paper can be changed without stopping.

* the operation of the whole machine is 6 cylinder full hydraulic control, and the hydraulic control clip arm lifts,

Clamping and opening, left and right:

The clip wall adopts the cast iron curve structure, which is stable and stable.

* configure the oil pressure system. (Taiwan brand)

* tension control: the use of multi point pneumatic brake, good brake performance, fast heat dissipation,

A pressure valve, a pressure regulating valve and a pressure gauge are attached.

The chuck adopts the top - up top design, which does not destroy the paper core, and the original paper is used more thoroughly.

Specifications:

* the maximum use of paper width 2500mm.

* maximum diameter of the original paper: O 1500mm.

* the minimum diameter of the original paper: O 350mm.
