Dpack corrugator WJ200-1800 3Layer Corrugated Cardboard Production/Supplier from China Dpack
Dpack corrugator WJ200-1800 3Layer Corrugated Cardboard Production/Supplier from China Dpack
Specifications
Brand Name :
Dpack
Model Number :
WJ200-1800
Certification :
IOS9001
Place of Origin :
China Hebei Dongguang
MOQ :
1 Line
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1 Line/130 Days
Delivery Time :
According to product
Packaging Details :
Wooden case or wrapping film
Design speed :
200m/min
Normal work speed :
160-180m/min
Manufacture width :
1800mm
Production Line Length :
About 70meters
Description

Main Specification

Model: WJ200-1800 3Layer Corrugated Carton Production Line

1. Design speed: 200m/min

2. Normal work speed:160-180m/min

3. Manufacture width: 1800mm

4.Production Line Length:About 70meters (Exact length basis on groundwork drawing)

5. Note: The roll paper which is used to test the production speed should meet following requirements:

*Grade: Min. B * Moisture content: 11% ± 1%

*Face paper: 100~150g/m2 * Liner paper: 100~150g/m2

*Corrugated paper: 105- 180g/m2

6. Flute profiles: A,B,C,E flute(as per clients request)

7.Steam requirements:

Steam quantity: 1800－2000Kg/Hr Max. pressure: 1.6Mpa

Normal pressure: 0.8－1.25MPa

8.Voltage : 380V 50Hz three-phase, or four phase

9.Equipment Direction:Left or Right transmission will be according to client`s requirements

10. equipment total power: about 260 kW, equipment commonly used power: 200 kw

Remarks: Buyer supply part:

Air compressor and glue pipeline

Main power, electric wire from operate box to main power.

Water supply, pipeline and barrel.

Water, electric and gas, main groundsill foundation.

Test machine use Raw materials ( paper roll, corn starch, caustic soda, sodium borax) to test machinery

Machine use oil, lubricate oil and high temperature lubricate oil.

Installing engineer’s food, hotel and supply enough workers to help installing and test machine.

Boiler 4T

Quality Guarantee

1. Quality Guarantee period: one year after final acceptance

2. Within the period of quality guarantee, the Seller is obliged to supply technical assistance to the Buyer to ensure normal production. Within the period of quality guarantee, in case of any defects or malfunctions, which have been proven to be caused by Seller’s poor materials, designing errors, and poor fabrication and assembly technology, upon receipt of the Buyer’s information in writing, the Seller will send its technicians immediately.

3. Within the period of quality guarantee, in case of any defects or malfunctions, which have been proven to be caused by the Buyer using improper material, mis-operating and maintenance, upon receipt of the Buyer’s information in writing, the Seller will send its technicians immediately. The international air tickets (if necessary), local transportation and accommodation will be borne by the buyer.

WJ200-1800-3LayerCorrugated Carton Production Line Price List

Design speed: 200m/min Normal work speed: 160-180m/min
No. Machine name Qty Remarks
1 Mill roll stand 3 RS-1500-1800 type, Base paper lifting, clamping, loosening, left shift, right shift are hydraulic control, multiple brakes, sawtooth chuck, the maximum paper width is 1850mm, the maximum paper diameter 1500mm.Hydraulic valve made in Tianyuan .
2 Hydraulic railing and pulley 6

6m railing with pulley

16# channel steel
3 Pre-heater 1 MH-900T-1800 type, preheating cylinder diameter of 900mm, adjust the electric preheating area, water valve for the Shanghai brand, with safety protection cover
4 Cassette Single facer 1

HSF-380S-1800 Cassette type, tunsteng carbide roller 380mm, Origin : RMM

The main bearing adopts NSK brand

The coating section adopts independent transmission

Adjusts the glue quantity according to PLC automatic control, and the whole can be moved. Glue groove stainless steel,

Adjust the glue quantity automatically according to the speed.
Extra flute group 1 Corrugating roll diameter 380mm,E flute
Battery pulley 1 Battery pulley and table 1set
5 Pre-conditioner 1 MH-900T-1800 type, preheating cylinder diameter of 900mm, adjust the electric preheating area, water valve for the Shanghai brand, with safety protection cover

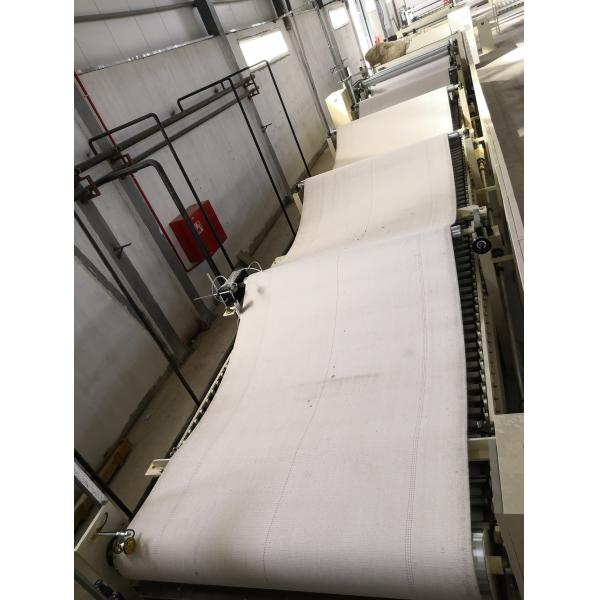

6 Bridge conveyor 1 ST-1800 bridge. One sets of paper pulling parts, electric deviation correction. According to the speed adjustment of single machine, keep synchronization.
7 Double pre-heater 1 MH-900T-1800 type, preheating cylinder diameter of 900mm, adjust the electric preheating area, water valve for the Shanghai brand, with safety protection cover
8 Gluing machine 1 GA-318D-1800 type of 318mm, variable frequency motor, display quantity of cement, the main bearings imported products.
9 Double facer 1 DF-745-1800 type, Large worm gear box, automatic deviation correction, frequency conversion motor, wallboard for casting, drive roller hanging glue, 600mm * 18 block heating plate, hydraulic lifting. heating plate plated chrome. Pre-paint .
10 Main drive 1

Diameter 745mm

Rubber roller

Independent reducer box, gimbal driving.
11 NC slitter 1 SS-200P-1800, For a single time less than 8 seconds, 5 knife 8 line, zero line
12 NC cutter 1

NC-200N-1800, Paper length is 9999mm. The computer can store multiple orders, the man-machine interface is separated, the display shows production information, and the computer controls the automatic change list without stopping the machine. Paper cutting accuracy + 1mm. Cutter shaft of 228mm spiral knife in Taiwan.

Color mark recognition system

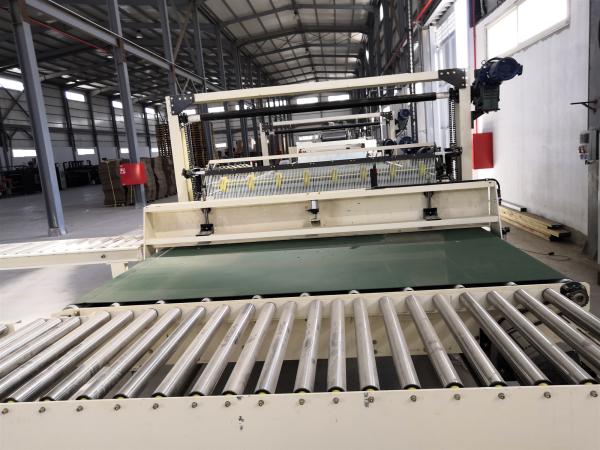

14 Computerized stacking machine 1

CS-200P-1800,Max stack length: 450-3200mm,

Max stack height: 1600mm(stack height should not be higher 3 times of paperboard height)
15 Glue making system 1

main pot 1 set, carrier pot 1 set, and storage pot 2set, glue station pump, single facer glue pump and gluing machine glue pump.Total 7pumps

Circle supply glue, pipeline provided by customer
16 Pneumatic system 1

Separator and 1 set air storage Jar and air pump.

Pipes provided by customer.
17 Electric system 1

Adopt OMRON Schneider and other European brands.

Including wires from switch board to main motor.
18 Steam system 1 pipes above valves provided by customers.
