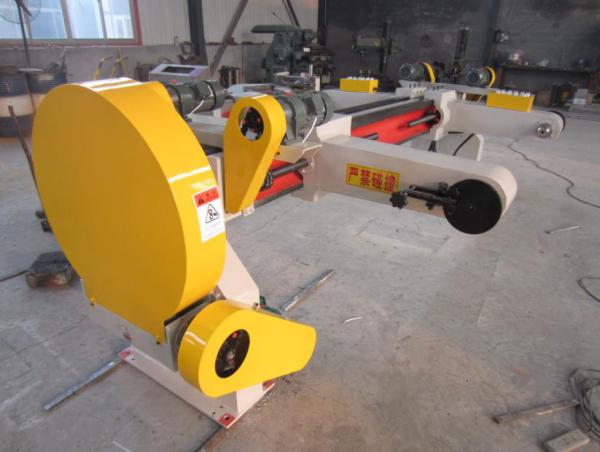

Dpack corrugated RA-1500H Electric Hydraulic Mill Roll Stand 4.5kw Power For Low Speed Line
Dpack corrugated RA-1500H Electric Hydraulic Mill Roll Stand 4.5kw Power For Low Speed Line
Specifications
Brand Name :
Dpack
Model Number :
RA-1500H
Certification :
IOS9001
Place of Origin :
China Hebei Dongguang
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
15 Sets/Month
Delivery Time :
According To Product
Packaging Details :
Wooden case or wrapping film
Stand move mode： :
Mechanically electric
Working width max :
1400mm
Working width min :
100mm
Paper diameter :
1400mm
Single maximum load :
Max1500kg
Dimension :
3600×850×2100mm
Description

RA-1500H Electric Machinery Shaftless Support

Structural characteristics :

* Symmetrical structure can be installed with two bundles of paper cylinders at the same time, which can be used for paper exchange without stopping.

* Use electric clamping, loosening, moving to the center, left and right translation and other actions.

* Brake adjustment adopts butterfly disk system.

* With two-stage automatic expansion clamping head, the clamping head is three inch type.

Technical Parameter:

* Stand move mode:Mechanically electric

* Working width: Max 1400mm Min 100mm

* Paper diameter: Max￠1400mm

* Single maximum load: Max1500kg

* Working power:Voltage 380V Frequency50Hz

* Clamp paper motor: 0.75kw×4sets

* Elevator motor:1.5kw 1set

* Total power:4.5kw

* Dimension:3600×850×2100mm

Main purchased parts, raw materials and origin:

Wallboard: produced by jinan iron and steel Q235A Weldment

Main bearing: Dpack Weldment

*Electrical device: Made in Delixi

Expansion type paper clamp head: Made in hebei

*Bearing:made in Ha, Wa , Luo .
