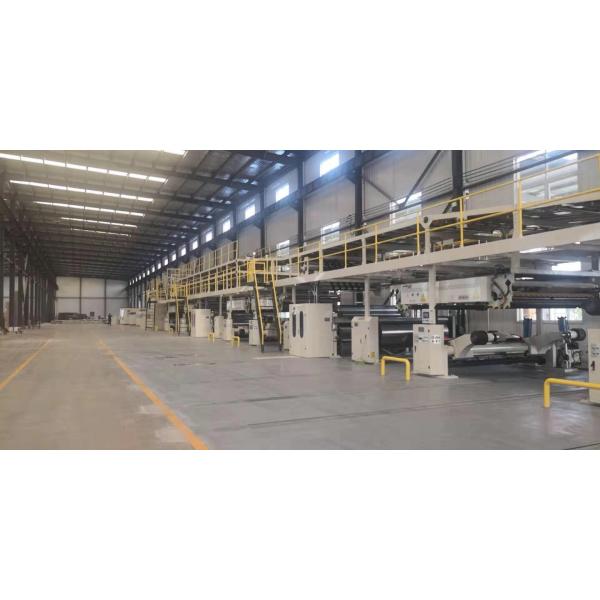

Dpack corrugated WJ250-2500-5-layer corrugated board production Line Dpack Product corrugation plant from China
Dpack corrugated WJ250-2500-5-layer corrugated board production Line Dpack Product corrugation plant from China
Specifications
Brand Name :
Dpack
Model Number :
WJ250-2500
Certification :
IOS9001
Place of Origin :
China Hebei Dongguang
MOQ :
1 Line
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1 Line/130 Days
Delivery Time :
According to product
Packaging Details :
Wooden case or wrapping film
Brand :
Dpack
Steam heating system :
4000Kg/Hr steam boiler, Pressure 1.25-1.6mpa, steam pipe and return air and drainage pipe on the valve of the equipment
Model :
WJ250-2500 five-layer corrugated board production line
Design speed :
250m/min
Description

WJ250-2500-5-layer corrugated board production Line Dpack Product from China

Steam heating system: 4000Kg/Hr steam boiler, Pressure 1.25-1.6mpa, steam pipe and return air and drainage pipe on the valve of the equipment

Air compressor, air pipeline and Glue liquid pipeline

Power supply, the wire link to operate box and circuitry pipeline

Water source, water feeding pipeline and barrel.

Groundsill plane installation project for water, electricity and air

The material of paper, corn starch, Caustic soda for industry and borax etc.

The engine oil, lubrication, hydraulic oil, grease and high temperature lubricating grease for equipment.

Model: WJ250-2500 five-layer corrugated board production line:
Design speed: 250m/min
220m/min for three floors, 200m/min for five floors
Expiry width:2500mm

Length of production line: about 90m (the specific length is subject to the technical drawing)

Note: The paper which test the speed of production line according to the request, as follows

*Reel–paper grade not less than B. *The moisture rate of reel paper:11%±1%

*Face paper:140-180g/m2 *inner paper:90-125g/m2 *Corrugated paper:90-125g/m2

Flute: C and B and E flute type (as per the clients’ request)

Steam requirements: steam capacity 3200Kg/h, maximum pressure:1.6mpa ,commonly used pressure 1.25mpa

Voltage and Current frequency:380V, 50Hz,three-phase four-wire system(also as per clients country standard voltage and frequency)

Total power of the equipment: about kw Common power of equipment: kw

Recommended plant size :100 m x 20 m x 9 m (length x width x height)

Equipment direction: Left or right transmission will be according to cilent’s request.

Dpack corrugated WJ250-2500-5-layer corrugated board production Line Dpack Product corrugation plant from China
