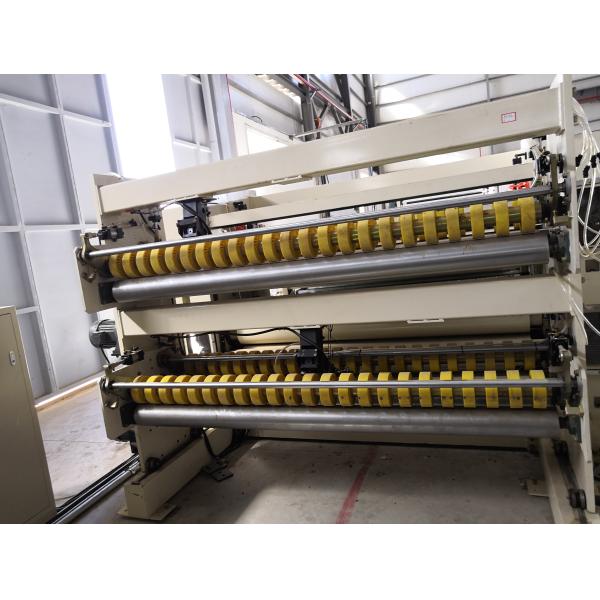

Technical parameter

Power supply: voltage 380V, frequency 50Hz, current 80A

Total power of the machine: 82.16kw

The overall size of the machine is 3400mm x 1940mm x 2100mm (length * width * height)

Structure characteristics:

Design of special structure, mechanical wall board and base with excellent strength. The two sides of the wallboard are equipped with fluoroscopy window, which is convenient for observation and maintenance.

The transmission system is automatically lubricated by the oil pump to ensure the transmission accuracy.

High precision, high hardness grinding gear, high speed resistance, long life, ensure accurate blade engagement, flat paperboard without burrs.

High precision tool spindle, tool holder design, high speed cutting, very smooth.

The structure design of special exchange knife is very quick and convenient.

The whole system is designed and manufactured by C.E standard, and has passed strict industrial grade computer test to ensure the quality, life and stability.

The driving part adopts AC servo drive, fast response and accurate action.

Using special power recovery storage design, the power saving effect is excellent, and it has the advantages of overcoming the unstable power plant environment.

The system has automatic detection function, which can prevent the loss of equipment caused by abnormal operation and careless operation.

* the computer can automatically adjust the paper cutting speed according to the board specification and production speed; it can automatically track the running speed of the paperboard and keep the synchronization.

* computers can store up to 999 sets of orders and automatically complete them in sequence or according to priority conditions.

* paper length 500~9999mm, paper cutting accuracy + 1mm.

* spiral knife used in Taiwan.

The cutter shaft bearing is made in Japan NSK, which is convenient for high speed operation and durability of the equipment.

Raw materials and purchased parts

Materials for both sides of wallboard and base: 20 steel: Hebei

Top and bottom tool shaft material No. 45 steel

Blade material: W18crv5Co5 (high speed tool steel) origin: Taiwan

Gear material: 40Cr fine grinding quenching and tempering treatment

Main drive motor (AC servo) power 37KW 2 units: Hebei

Paper fed motor power 3.7kw 2 units: Hengshui

Oil pump motor power 0.19kw 4 units: Zhejiang

Computer control system

Bearing type: (main) Japan NSK (general) tile, Kazakhstan, Luo (bearing) Fujian production FK

Electrical appliances: Zhejiang CHINT production

Pneumatic components: Taiwan, Shandong Tianyuan.
