QH-PACK 5 Ply Corrugated Cardboard Production Line , Corrugated Paper Making Machine
QH-PACK 5 Ply Corrugated Cardboard Production Line , Corrugated Paper Making Machine
QH-PACK 5 Ply Corrugated Cardboard Production Line , Corrugated Paper Making Machine
QH-PACK 5 Ply Corrugated Cardboard Production Line , Corrugated Paper Making Machine
Specifications
Brand Name :
QH
Model Number :
1450
Certification :
CE ISO
Place of Origin :
hebei
MOQ :
1 set
Price :
USD 230000-300000 per set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per year
Delivery Time :
150 days
Packaging Details :
standard
speed :
100
name :
corrugated carton making machine
application :
carton box
warranty :
1 year
color :
customer
voltage :
380 v
Description

QH-PACK 1450 -5 ply corrugated cardboard production line

Model Name Units Note
QHMRS-1450E Electric Reel Stand 5 expand chuck,manual dics brakes,Mechanically - actuated lift,panning left and right on the middle. track length4500mm,trolley used 10mm medium plate welding
QHPH-600 Single Pre-heater (floor) 4 Roller ¢ 600mm, including pressure vessel certificate. Electric adjustment angle. The wrap angle can adjust the heated area of the paper within 360°.

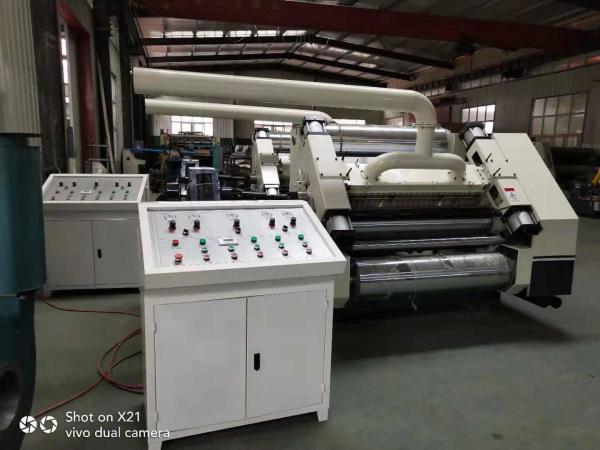

QHSF-280S Single Facer 3 Corrugated main roll ¢ 280mm, material 48CrMo alloy steel. Independent gearbox, universal joint transmission structure.
QHPH-600 Triplex preheated 1 Roller ¢ 600mm, including pressure vessel certificate. Electric adjustment angle. The wrap angle can adjust the heated area of the paper within 360°..
QHOB-1450D Duplex Bridge 1 The main beam 200mm channel steel, independent variable frequency motor driven paper transport, adsorption tension. Electric correction.
QHG-1450D Double glue machine 1 Coated roller diameter 269mm; engraved 25-line pit type net pattern; independent variable frequency motor drive, PLC adjustment glue gap and man-machine interface; glue digital display.
QHDF-1450 Double Facer machine 1 Drying department 12 heating plates, pneumatic lifting pressure roller, using dense pressure roller.
QHSS-1450E Electric adjustment thin blade machine 1 Electric adjustment knife, electric bias, 5 knife 8-wire type, blade made of tungsten alloy steel.
QHNC-1450H Double NC Cut off machine 1 Full AC servo control, energy storage brake, spiral knife structure, oil gear drive, 10.4 inch touch screen display.
QHAS-1450S Double layer Stacker 1 Electrically adjust the cardboard size and pneumatically control the lateral output cardboard.
ZQ Steam system 1 Including equipment pipeline valves, steam traps, meters and other steam components, customer-owned heat sources and pipelines.
ZJZ Glue making system 1 Pipeline customers bring their own. The glue making device consists of a carrier tank, a main tank, a storage tank, and a glue pump and a back pump.

QH-PACK 5 Ply Corrugated Cardboard Production Line , Corrugated Paper Making Machine

QH-PACK 5 Ply Corrugated Cardboard Production Line , Corrugated Paper Making MachineQH-PACK 5 Ply Corrugated Cardboard Production Line , Corrugated Paper Making Machine
