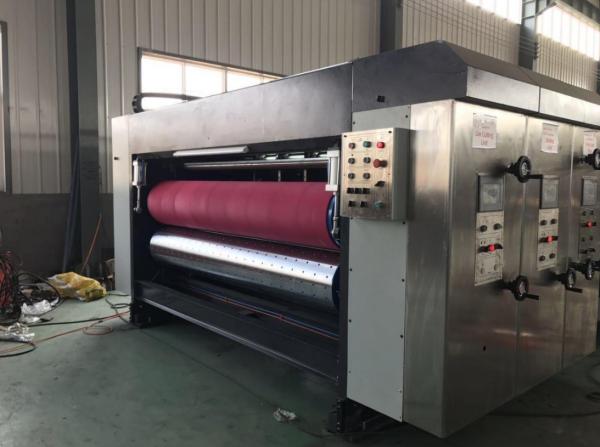

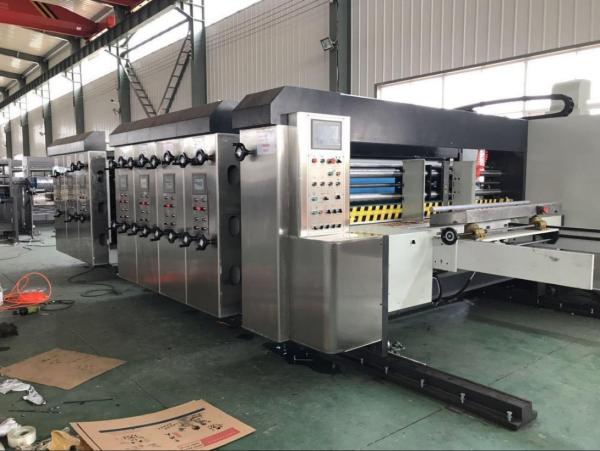

25kw Flexo Printer Slotter Machine 200pcs/Min Touch Screen Printing Size 1400x1600
25kw Flexo Printer Slotter Machine 200pcs/Min Touch Screen Printing Size 1400x1600
25kw Flexo Printer Slotter Machine 200pcs/Min Touch Screen Printing Size 1400x1600
25kw Flexo Printer Slotter Machine 200pcs/Min Touch Screen Printing Size 1400x1600
Specifications
Brand Name :
Quanheng
Model Number :
QHYKM200
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiate
Supply Ability :
20set per year
Delivery Time :
90days
Packaging Details :
stardard
Usage :
flexo printer slotter die cutter
Application :
corrugated carton box
Function :
carton box printer slotter die cutter
Warranty :
12month
Voltage :
customer
Power :
25kw
Description

QHYKM200 Lead Edge Feeder Flexo Printer Slotter Rotary Die Cutter Machine

Functions and Features:

1. The machine absorbed the characteristics of similar foreign models to heavy-duty as a wide concept,and strictly in accordance with mechanical standards,increase the selection of various parts of delivery system,focusing on tone version,chuan-ink,transmission structure of the reorganization.

2. Control system:Using mechanical and electrical integration of the latest design concept, centralized control system and human-machine interface touch screen planetary weeks to the combination of adjustable edition system, implement without downtime focus adjustment, rapid and accurate overprint, reduce waste.

3. Transmisson system:The transmission shaft and gear are free key link and cross slide block transmission mechanism, the closed loop spray lubrication, realize the machine running gear without clearance, ensure long-term overprint precision.

4. Inking system:with high precision roller and ink roller, another independent motor drive, overrunning clutch separation, ensure outage on ink, ink on the pneumatic diaphragm pump, pneumatic lift version

5. The machine automatically lock control system and equipment in the running state lock the humanized design of the failure protection system, electric walk, protection of the clutch.

6. Mainframe wallboard material for HT250, after artificial aging treatment, large processing center and ensure high strength and high precision.

Name of parameter QHYKM-200-900; QHYKM-200-1200; QHYKM-200-1400
Design Speed 200pcs/min 200pcs/min 200pcs/min
Economy Speed 150pcs/min 150pcs/min 150pcs/min
Max.Paper Sizes

900x1800/2000/2200/

2400/2600mm

1200x1800/2000/

2200/2400/2600

1400x1800/2000/

2200/2400/2600

Min.Paper Size

Positive knife

Negative knife

300x640mm

300x720mm

350x720mm

350x740mm

400x720mm

400x740mm
Max.Printing Size

900x1600/1800/

2000/2200/2400

1200x1600/1800/

2000/2200/2400/

1400x1600/1800/

2000/2200/2400/
Max die-cutting size

900x1750/1950/

2150/2350/2550

1200x1750/1950/

2150/2350/2550

1400x1750/1950/

2150/2350/2550
Standard Printing Plate Thickness 7.2mm
Slot Width X Max.Depth 7x220mm 7x300mm 7x350mm

Min.Slot Space

Positive knife

Negative knife

150*150*150*150

250*90*250*90

170*170*170*170

250*90*250*90

170*170*170*170

250*90*250*90
Printing roller dia(plus printing plate thickness) 300mm 408mm 480mm
