Shaftless Box Manufacturing Equipment , Hydraulic Mill Roll Stand For Roll Paper
Shaftless Box Manufacturing Equipment , Hydraulic Mill Roll Stand For Roll Paper
Shaftless Box Manufacturing Equipment , Hydraulic Mill Roll Stand For Roll Paper
Shaftless Box Manufacturing Equipment , Hydraulic Mill Roll Stand For Roll Paper
Specifications
Brand Name :
QUANHENG
Model Number :
QH
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100sets/month
Delivery Time :
30 days
Packaging Details :
Plastic Packing in the container
Material :
Good quality steel making
Width :
1200 To 2500mm width
Power :
4.5kw
Color :
Customer Choose
Type :
Hydraulic working
Function :
Working for roll paper
Description

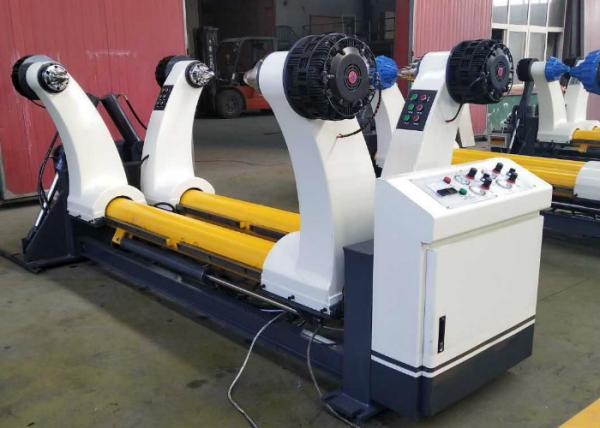

※ZJ-V5B hydraulic shaftless mill roll stand

structural feature:

  • Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
  • Brake adjustable adopts multipoint braking system.
  • Every stand matched two sets paper car , and they can paper on the both sides at the same time.

technical parameters:

  • The range of clamping paper:MAX1600mm MIN1000mm
  • Clamping diameters:MAX￠1500mm MIN￠350mm
  • Main shaft diameter of paper holder:￠242mm
  • Gas source work pressure(Mpa):0.4---0.8Mpa
  • Equipment size:Lmx4.3*Wmx1.8*Hmx1.6
  • Single weight:MAX2000Kg

Hydraulic system parameters:

  • Work pressure(Mpa):16---18Mpa
  • Lifting hydraulic cylinder:￠100×440mm
  • Clamping hydraulic cylinder:￠63×1300m
  • Hydraulic station motor power:3KW --380V -- 50Hz
  • Solenoid valve voltage:220V 50 Hz

Mainly purchased parts, raw materials and origin:

Name of main parts Brands or place of origin material
Main shaft Day steel production diameter242mm
Swing arm Production by own Resin sand gray ironHT200
wallboard Jigang prduction Q235AWelding parts
bearing HRB,ZWZ,LYC
Toothed chuck Zhejiang xusheng 3,4inch shared
Main electrical appliance France Schneider
button CHINT NP2series
Air switch French Schneider
Pneumatic components Japan SMC or Taiwan Airtac
Hydraulic station Shandong zaozhuang
Brake pump zhejiang
