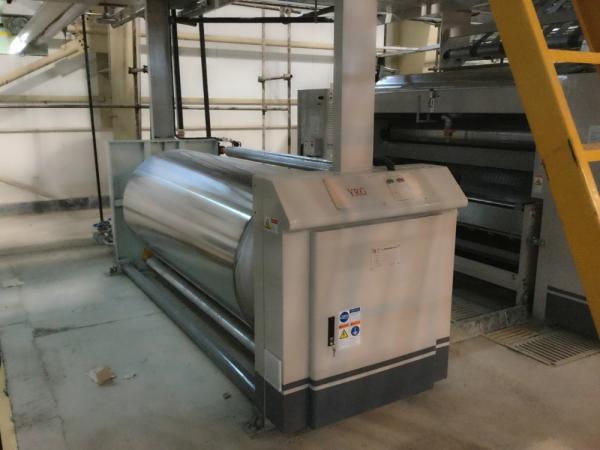

Model: WJ1800mm-II five-layer corrugated cardboard production line:

1. Maximum production width of corrugated board: 1800mm

2. Design speed: 150m/min; Economic speed: 120m/min

Note: The paper for production line speed test should meet the following requirements: (The surface temperature of equipment is not lower than 172°C)

* The grade of the base paper must not be lower than Grade B

* The water content of the base paper is approximately: 11% ± 2%

* Face Paper: 100-250g/m2 * Core Paper: 100--250g/m2

* Paper tiles: 100-200g/m2

3, corrugated type combination: A, B, C, E (or selected by the customer)

4, steam requirements:

* Steam volume 2500-3000Kg/Hr * Maximum pressure: 1.2Mpa

* Common pressure: 0.8-1.1Mpa

6, power supply: 380V 50Hz three-phase four-wire system

7, the equipment covers an area: about the specific length based on the foundation foundation map

8, the device out of paper direction: according to the user's plant to determine the drive left or right

9, equipment applicability, available A, B, C grade homemade base paper or imported paper

Customer-owned part

1. Steam heating system: It is recommended to use a 4000Kg/Hr steam boiler with a pressure of 1.25Mpa steam pipe.

2, air compressors, air ducts, glue pipelines.

3, power, wires connected to the operating cabinet and line pipe.

4, water, water pipes, buckets and so on.

5, water, electricity, gas ground plane installation of civil engineering.

6, raw materials for test run, corn (potato) starch, caustic soda for industrial use, borax and other materials.

7, equipment with oil, lubricants, hydraulic oil, grease.

8. Install and adjust personnel's diet and accommodation, and provide installation workers to cooperate with the installation and pay the workers' daily salary.
