Electric Corrugated Cardboard Making Machine Speed 80-250m/Min Material Steel
Electric Corrugated Cardboard Making Machine Speed 80-250m/Min Material Steel
Electric Corrugated Cardboard Making Machine Speed 80-250m/Min Material Steel
Electric Corrugated Cardboard Making Machine Speed 80-250m/Min Material Steel
Specifications
Brand Name :
Quanheng
Model Number :
QH
Certification :
CE , ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10sets/month
Delivery Time :
90days
Packaging Details :
plastic film packing
Material :
Good Quality steel making
Size :
1200-2500mm
Color :
Customer choose
Speed :
80-250m/min
Drive :
Steam heating or electric heating
Key Words :
Corrugated cardboard making machine
Description

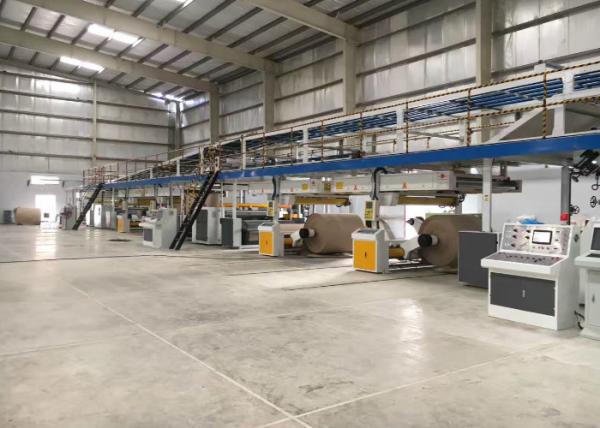

WJ150-2200-Ⅱ type five layer corrugated roller cardboard production line

Device configuration and technical instruction

specification Equipment name Remark
YV5B Hydraulic shaftless mill roll stand

Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.Guide rail length 6000mm,use of plate welding.

Rail length6000mm,trolley used 10mm plate welding.
Paper trolley
JZJ Automatic splicer Automatic splicer keep corrugating cardboard assembly line uninterrupted work,Reduce paper consumption,Greatly improve productivity.Maximum speed 150m/min.
RG-1-900 Top paper preheat cylinder roller ￠900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
RG-1-900 Core paper preheat cylinder roller ￠900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
SF-320C Fingerless type single facer Corrugated main roller ￠320mm,material with 48CrMo alloy steel,tungsten carbide dealing,Tile roll modular group lifting transfer.Airbag ballasting structure,import main bearing,PLC automatic control glue,HMI touch screen,Breaks automatic parking relief,steam heating way.
RG-3-900 Triple preheater roller ￠900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.
GM-20 Double glue machine Glue roller diameter 269mm.Each independent frequency motor drive, manual adjustment glue gap.
ZDF heavy type conveyor bridge 200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension.Electric correction.
SM-F Double facer Rack 360 mm GB channel,Chrome hot plate 600 mm *16 pieces,The whole structure of the hot plate design.PLC automatic control press plate. Temperature display, frequency motor.
NCBD NCBD thin blade slitter scorer Tungsten alloy steel, six knives ten lines,zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.
NC-150 NC cutter helical knives Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.
DM-LM computer gantry automatic stacking machine Servo drive platform lifting, three section of frequency transport,automatic points stack discharge,Imported high-strength belt output, out paper side standard transport aircraft.
ZJZ Glue station system Customers -owned pipeline.Glue configuration is composed by carrier tank,main tank,storage tank,and send plastic pump,back plastic pump.
QU Gas source system Air pump,pipeline is prepared by the customers.
ZQ Steam system Steam system components used in all GB valves.Including rotary joint,upper and lower dispenser.traps,pressure table and so on.Customer-owned boilers and pipes.
DQ Electrical control cabinet system

Electronic control system::fingerless single facer,driving part,NC thin blade slitter scorer,double facer,glue machine all adopt frequency motor,delta frequency control system.operation interface easy and convenient,Speed display control cabinet with each unit speed display, the unit call, emergency stop function.

The main relays Schneider brand.
