4.5T Flute Laminator Machine Dimensions 8800×2500×1700mm For Corrugated Carton Box
4.5T Flute Laminator Machine Dimensions 8800×2500×1700mm For Corrugated Carton Box
4.5T Flute Laminator Machine Dimensions 8800×2500×1700mm For Corrugated Carton Box
4.5T Flute Laminator Machine Dimensions 8800×2500×1700mm For Corrugated Carton Box
4.5T Flute Laminator Machine Dimensions 8800×2500×1700mm For Corrugated Carton Box
4.5T Flute Laminator Machine Dimensions 8800×2500×1700mm For Corrugated Carton Box
4.5T Flute Laminator Machine Dimensions 8800×2500×1700mm For Corrugated Carton Box
4.5T Flute Laminator Machine Dimensions 8800×2500×1700mm For Corrugated Carton Box
4.5T Flute Laminator Machine Dimensions 8800×2500×1700mm For Corrugated Carton Box
4.5T Flute Laminator Machine Dimensions 8800×2500×1700mm For Corrugated Carton Box
Specifications
Brand Name :
Quanheng
Model Number :
QH-A
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiate
Supply Ability :
100 SETS PER YEAR
Delivery Time :
30DAYS
Packaging Details :
STARDARD
Application :
corrugated carton box
Usage :
carton box making
Function :
laminator cardboard
Voltage :
customer
Automatic Grade :
semi automatic
After-sales Service :
Overseas service center available
Description

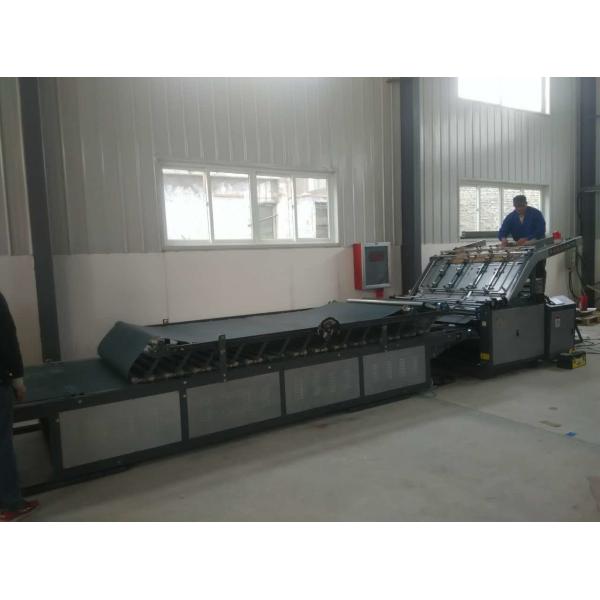

QH-A SemiAutomatic Flute Laminator Machine

Main chracteristics:


Tumup bridge plate is convenient for cleaning,discontinuous wate-circulating system ensures washing cleam.
Automatic feeding for bottom sheet,manual feeding fortop sheet (feeding fom side for top sheet is optional).
Flexible font register,bottom sheet is not exceeding the top sheet ,and it's adjustable for the front-and-rear lamination between ottom sheeet and top sheet.
Bottom sheet can be paperboard more than 350gsm,A/B/C/D/E/F corrugated cardboard.
Lnedlligemt control and compacted energysaving and controlling play from the stack of paper.
Using hight-precision plastic block device,sace glue.


Main technical parameters:

Model QH-1300A QH-1450A QH-1600A
Max sheet size 1300×1300mm 1450×1300mm 1600×1300mm
Min sheet size 320×450mm 320×450mm 320×450mm
Total power 7kw 7kw 7kw
Speed 0-90m/min 0-90m/min 0-90m/min
Weight 3.5T 4T 4.5T
Overall Dimensions 8800×2200×1700mm 8800×2350×1700mm 8800×2500×1700mm
