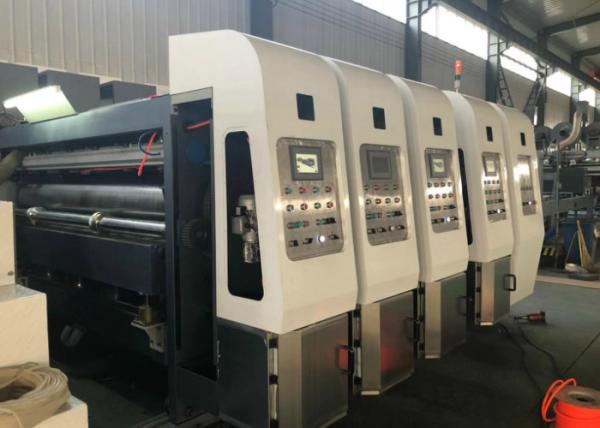

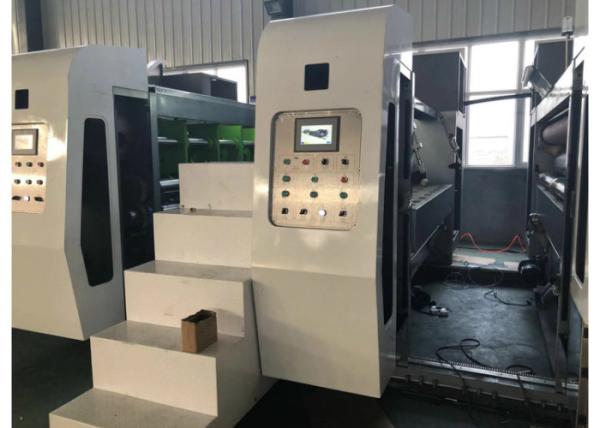

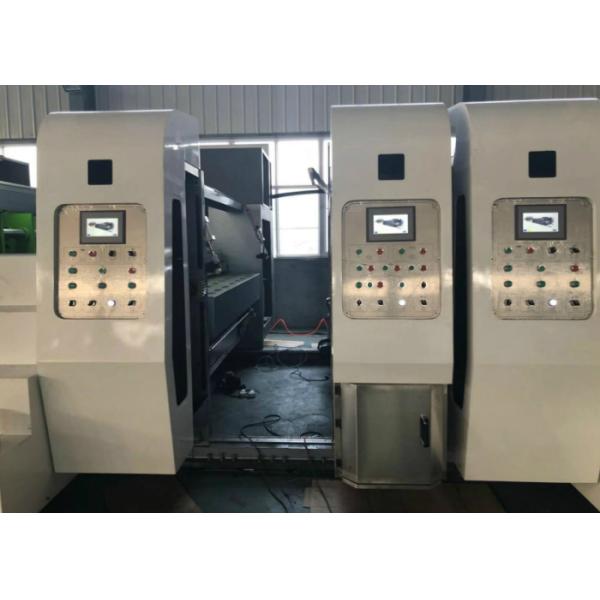

24T Flexo Printer Slotter Die Cutter , 30kw Corrugated Box Die Cutting Machine
24T Flexo Printer Slotter Die Cutter , 30kw Corrugated Box Die Cutting Machine
24T Flexo Printer Slotter Die Cutter , 30kw Corrugated Box Die Cutting Machine
24T Flexo Printer Slotter Die Cutter , 30kw Corrugated Box Die Cutting Machine
Specifications
Brand Name :
Quanheng
Model Number :
QH
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5sets/month
Delivery Time :
60days
Packaging Details :
plastic film packing in the container
Keywords :
flexo printing slotting machine
Working speed :
160pcs/min
Total power :
30kw
Weight(Tons) :
24tons
Drive :
Electric Drive
Size :
1200*2500mm
Description

GYKM180 series 1200 high speed flexo printer slotter and die-cutter machine

Function and parameters

1,The whole machine is designed and manufactured according to high speed, high precision, high efficiency, reliable stability and safety.

2,Control system: the use of international brands of programmable controller (PLC), industrial man-machine interface and inverter as the core of the electrical control system; to quickly replace the production orders, intelligent all-round program control, making the machine production and Adjustment in the more humane, higher security, product yield greatly improved.

3,Transmission system: transmission gear with 20GrMnTi alloy steel, refined from the six precision, hardness HRC58-62, using the key link ring and cross slider structure, to achieve gear without backlash drive, you can achieve long-term printing registration.

4, ink transfer system: the use of high-precision reticulated sticks and inkjet roller, another independent motor drive, beyond the clutch separation, pneumatic lift version, intelligent start, stop ink system. (Optional) Maijieke closed scraping system: with high cable cable ceramic mesh with, can achieve 100-120 network cable printing, can significantly improve the monochrome dot and multi-color overlay effect. Pneumatic two-way diaphragm pump for ink, ink, so that the operation fast, saving ink and easy to wash.

5,The host wallboard material is HT250, the thickness of 50 mm by artificial aging processing, large processing center processing, to ensure high strength and high precision.

NAME UNIT SPECIFICATION
2200 2400 2600 2800 3000
MAX.PAPER SIZE mm 1200*1900 1200*2100 1200*2300 1200*2500 1200*2700
MAX.PRINTING SIZE mm 1200*1800 1200*2000 1200*2200 1200*2400 1200*2600
Segmented paper feed size mm 1400*1900 1400*2100 1400*2300 1400*2500 1400*2700
Max slot depth mm 300
Min feed size mm 400*750(Slotted)
Min slot interval mm 260*100*260*100(Slotted backwards)
Standard plate thickness mm 7.2
Printed board thickness mm 2-10
Color accuracy mm ±0.5
Die cutting slotting accuracy mm ±1.5
Mechanical speed PIC/min 180
Working speed PIC/min 160
Total power (four colors) Kw 30
Weight(Tons) T() 20 22 24 26 28
