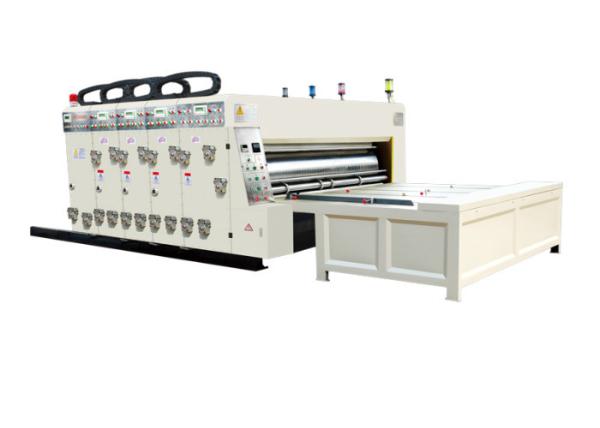

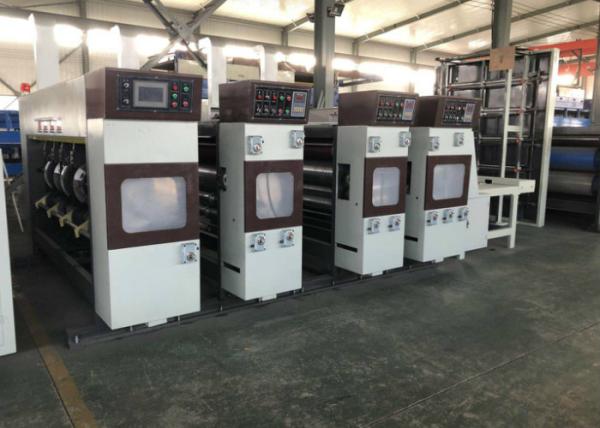

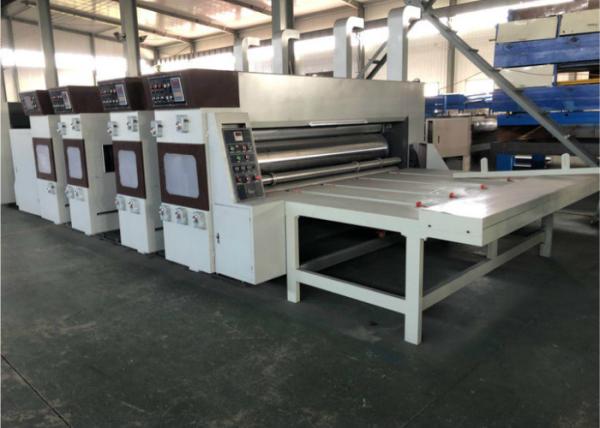

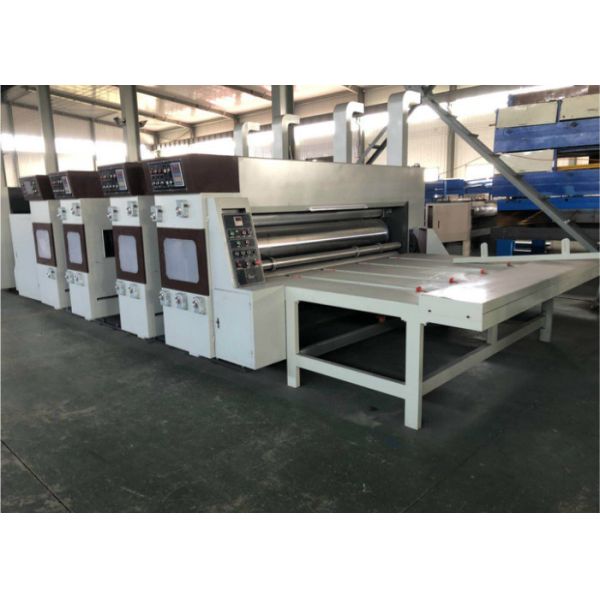

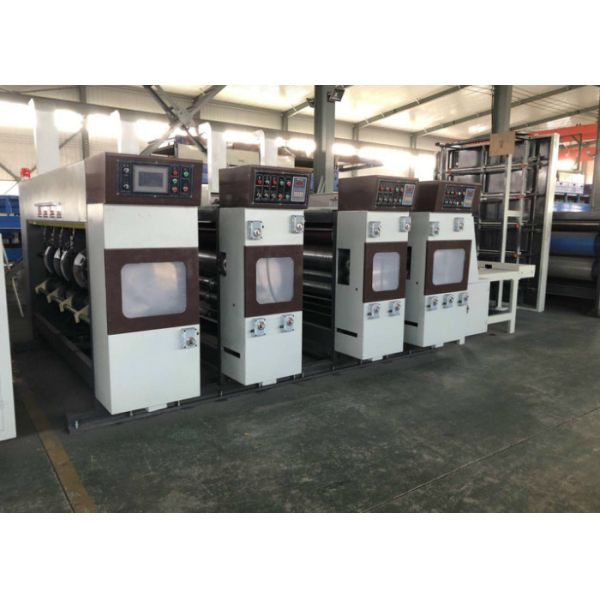

Chain Feeder Printing Slotting machine

Main technical parameter

Detailed Product Description

1. This machine adopts the up-to-date international design idea of electromechanical integration for high-grade printing.

2. It features in elegant appearance, compact structure, and high-degree automation.

3. It provides high printing sharpness, low topping error, and convenient adjustment.

4. Phase adjustment is made electrically, locking and stencil plate lifting are made pneumatically, And the ink distribution can be done automatically.

5. The adjustment system can realize high-standard, high-precision prompt phase adjustment within360°circumferentially.

6. The adjustment can be made with high precision via computer control without shutting down the overall machine. Gear lubrication device is adopted.

7. The slotting positions and carton height are adjusted manually. The four cutter are adjusted simultaneously to save the changing time.

Printing Part

Printing roller

1. Steel material, surface grinding and hard chrome plating.

2. Balance correction, stable operation.

3. Rachit fixed plate axis.

4. Full plating slot is suitable for 9mm plate.

5. Loading and unloading the printing plate, pedal switch control the forward and backward.

The printing pressure roller

1. The surface of the steel roller is grinding and hard chrome plating.

2. Balance correction, steady operation.

3. The gap between the printing pressure roller and the printing roller,the scal shows, adjusted by hand, the scope is 0-12mm. Adopt crosshead device, the transmitting gear will keep meshing while adjusting.

Metal anilox roller

(The high quality anilox roller adopts domestic famous manufacturers)

1. Surface adopts the advanced hard chrome plating, hard, slipper, and wearproof.

2. Anilox roller: three parts divided reasonable mesh, first unit 200mesh, second unit 220 mesh, third unit 250 mesh.

3. Pneumatic lifting the anilox roller matched with the paper feeding roller to prevent double inking and the dry of ink while stopping the machine.

4. The rubber roller(80% natural rubber and goes through high-temperater treatment)

5. Without gap steel wrapped with wearproof rubber, balance correction.

6. The middle and high of the rubber roller grinding, good transferring ink effect.

7. The rubber roller equiped with overload device, can pre-long the using life.

8. Upper and lower paper feeding roller

9. The upper roller: equipment with left and right adjustable wheel, and surface fixed with 50 degree rubber.

10. The lower roller: without gap steel surface grinding, hard chrome plating.

11. Scale shows the space between the upper and lower paper feeding roller, worn-wheel adjusting, the scope is 0-12mm, adopts crosshead connection, the gears keeps meshing while adjusting.

12. Phasing adjustable structure

13. Differential action planetary gear

14. The printing phasing adopts PLC and electrical digital adjustment ( no matter the machine are working or stopping).

15. For the horizontal position, the scale type manual adjusting.

16. Each printing unit can find its former position before stopping, which can achieve fast correcting.

17. Inking circulating

18. It adopts pneumatic diagram pump for inking, stable and easy to operate and keep in good repair.

19. The inking filter net to filter the inclusion.

20. Automatic distributing the ink device, without stopping the ink while machine stops, can prevent the ink going dry.

21. The ink cup prevent the inking splashing.

22. Steel ink fountain, automatic inking and circulating cleaning.

Slotting part

1. Manual adjustment the horizontal moving of the four slotting knives pedestal.

2. Synchronous adjustment the space between the two sltting knives ( the height of box)

3. Synchronous moving the upper and lower slotting knives, paper-kicking knives, up and down creasing wheel.

4. Alloy steel materials, hearing treatment, grinding and tooth form slotting knife, width is 5-7mm

5.The alloy steel through heart treatment and grinding the edge iron which is keen and high accuracy.
