QH-1-WJ 2plys Single Facer Line With SC Sheet Cutter Machine

Hydraulic shaftless mill roll stand

structural feature:

1.adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

2.brake adjustable adopts multipoint braking system.

3.every stand matched two sets paper car , and they can paper on the both sides at the same time.

technical parameters:

1,the range of clamping paper:MAX1600mm MIN1000mm 2,clamping diameters:MAX￠1500mm MIN￠

350mm 3,main shaft diameter of paper holder:￠240mm

4,gas source work pressure(Mpa):0.4---0.8Mpa

※Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa 2,lifting hydraulic cylinder:￠100×440mm

3.Clamping hydraulic cylinder:￠63×1300m 4,hydraulic station motor power:3KW --380V -- 50Hz

5,solenoid valve voltage:220V 50 Hz

-SF-280 Single Facer(fingerless single facer absorption)

echnical Parameters

• Expiry width: 1000mm

• Temperature: 160－200℃

• Total power: 15kw

• Heating method: steam heating

Structural Features

• The paper guiding adopts wind adsorption, keeping the stability of flutes under the condition of high speed.

• The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.

• The width of suction slot of lower corrugated roller is not more than 2.6mm, able to reduce the stripe mark on single side corrugated cardboard.

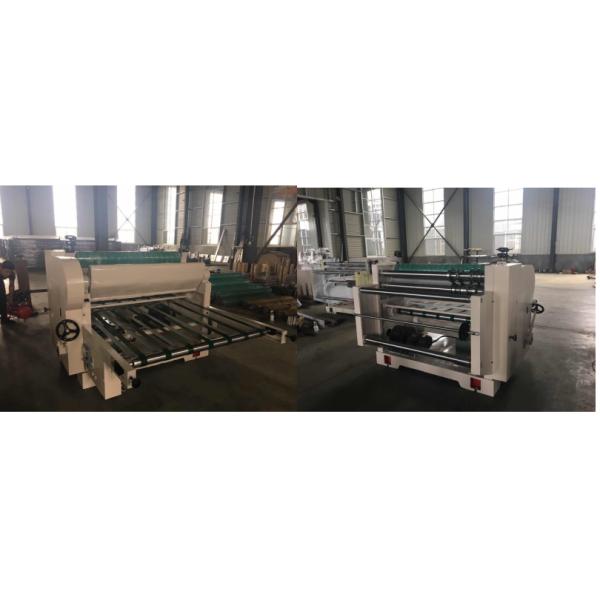

SC-Sheet cutter machine

main used for cutting the cylinder paper or single paperboard, corrugated board, cardboard etc carton processing

Features

SC series of cylinder cutting machine, main used for cutting the cylinder paper or single paperboard to quadrangle of needing. And has the characteristics such as easy structure, convenient adjustment, long using life and so on.
