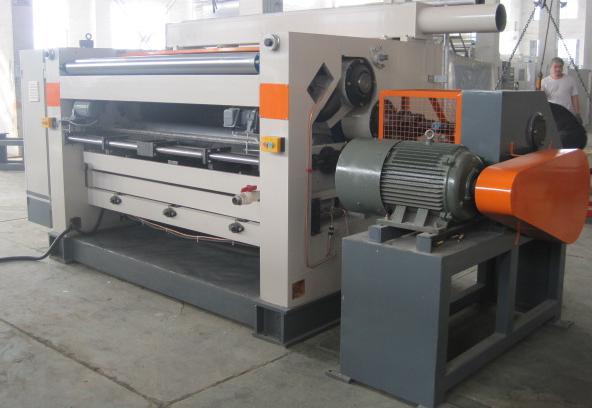

380V Single Facer Corrugated Machine 150m/Min Fingerless Type Width 1800mm
380V Single Facer Corrugated Machine 150m/Min Fingerless Type Width 1800mm
Specifications
Brand Name :
QH
Model Number :
320 type
Certification :
CE ISO
Place of Origin :
cangzhou
MOQ :
1 sets
Price :
USD+23000-30000+ 1 SET
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per year
Delivery Time :
45 days
Packaging Details :
standard
speed :
150 m/min
name :
single facer machine
power :
15 KW
application :
corrugated cardboard
voltage :
380V
warranty :
1 year
Description

SF-320C Fingerless Type Single Facer Corrugated Cardboard Machine

technical parameters:

1.effective width:1800mm 2,operate direction:left or right(Determined in accordance with the customer's facility)

3,design speed:150m/min 4,range of temperature:160—180℃

5,air source:0.4—0.9Mpa 6,steam pressure:0.8—1.3Mpa

7equipment:Lmx3.5*Wmx1.7*Hmx2.2 8,single weight:MAX 7000Kg

1,Special pulley crane configuration tile roll maintenance, convenient to use when maintenance tile roll, and fast.

2,Configuring an external guide pulley crane to lengthen the trip, in order to successfully remove the line outside the repair parts.
