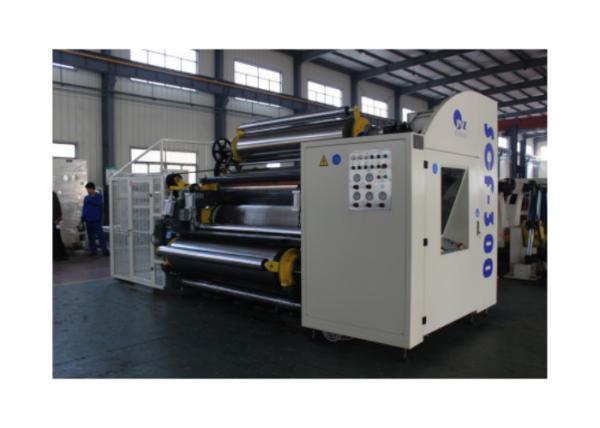

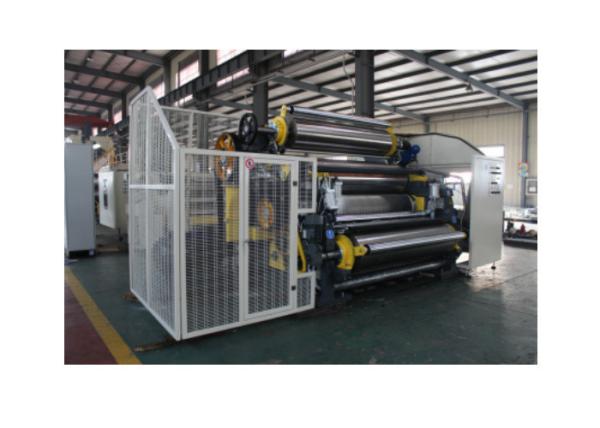

Cassette type single facer

Main include: main host(1set corrugated roller),gluing part, driver part, steam part, platform truck for change the corrugated roller, spare corrugated roller part, electrical part.

Technical Parameter:

*Working Width:Max2200mm

*Max machine speed:250mm/min

Technical Features:

• Up and Lower corrugated roller diameter:408mm, surface do tungsten carbide treatment, the hardness more than 75 degree.
• Lower corrugated roller control lift and down by oil hydraulic cylinder, oil pressure drive.
• Cassette type corrugated roller group can be exit to change, hydraulic type
• Upper and lower corrugated roll under the high frequency conditioning heat treatment, tempering through full computer numerical control the high precision grinding.
• Pressure roller diameter:400mm, adopt S45C made of and surface do grinding and chrome plate treatment. lift and down control by hydraulic cylinder.
• Gluing roller diameter:316mm,steel product, surface do chrome plate and computer high precision carving, automatic according to speed to adjust, can be ship out to washing
• Doctor roller diameter:190mm, surface do grinding and chrome plate treatment.
• Upper-Lower pre-heating roller:450mm, steel product.
• Steam conversion quickly: pneumatic module type conversion steam, more flexible.
• Adopt inner suction type, Corrugated paper agglutinate trace less and surface of cardboard smoothly
• Gluing roller surface do special anilox and chrome-coating treatment.
• Movable type gluing unit adopt independent transmission convenience to clean and maintain.
• The inlet and outlet of steam focus on one connect plate, connection controlled by pneumatic, convenient and quickly
• Pressure of corrugated roller, pressure roller and gluing unit controlled by hydraulic, more smoothly.
• Quick change the corrugated roller in approximate 15 mints

Main parts brand:

• Corrugated roller, pressure roller bearing adopt SFK or FAG brand,Gluing roller and fixed gluing roller bearing adopt SKF or FAG brand
• Electrical, main adopt ABB, SCHNEIDER, SIMENS brand.
• Motor, main adopt Taiwan Teco brand
• Converter, main adopt Taiwan DELTA brand
• PLC adopt Taiwan DELTA brand
• Gluing channel material adopt stainless steel
• Reducer gear box, the gear material is 40Cr,high precision grinding
•
