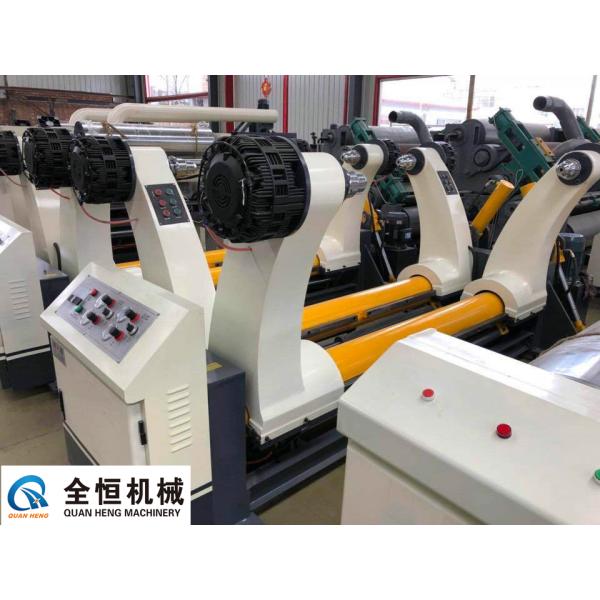

Hydraulic Shaftless Mill Roll Stand Steel Material Clamping Diameters 1500mm
Hydraulic Shaftless Mill Roll Stand Steel Material Clamping Diameters 1500mm
Specifications
Brand Name :
QH
Certification :
CE ISO
Place of Origin :
hebei
MOQ :
1 set
Price :
USD+4000-7000+1 SET
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
45 days
Packaging Details :
standard
power :
3 KW
warranty :
1 year
application :
cardboard
voltage :
380 V
weight :
2 T
packing :
standard
Description

Hydraulic Shaftless Mill Roll Stand Single Facer Corrugated Machine

structural feature:

1adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

2brake adjustable adopts multipoint braking system.

3every stand matched two sets paper car , and they can paper on the both sides at the same time.

technical parameters:

1. the range of clamping paper:MAX1600mm MIN1000mm

2. clamping diameters:MAX￠1500mm MIN￠350mm

3. main shaft diameter of paper holder:￠240mm

4. gas source work pressure(Mpa):0.4---0.8Mpa

Hydraulic system parameters:

1. Work pressure(Mpa):16---18Mpa

2. lifting hydraulic cylinder:￠100×440mm

3. Clamping hydraulic cylinder:￠63×1300m

4. hydraulic station motor power:3KW --380V -- 50Hz

5. solenoid valve voltage:220V 50 Hz

Mainly purchased parts, raw materials and origin:

Name of main parts Brands or place of origin material
Main shaft Day steel production diameter242mm
Swing arm Production by own Resin sand gray ironHT200
wallboard Jigang prduction Q235AWelding parts
bearing HRB,ZWZ,LYC
Toothed chuck Zhejiang xusheng 3,4inch shared
Main electrical appliance France Schneider
button CHINT NP2series
Air switch French Schneider
Pneumatic components Zhejiang Sonor CSM
Hydraulic station Shandong zaozhuang
Brake pump zhejiang
