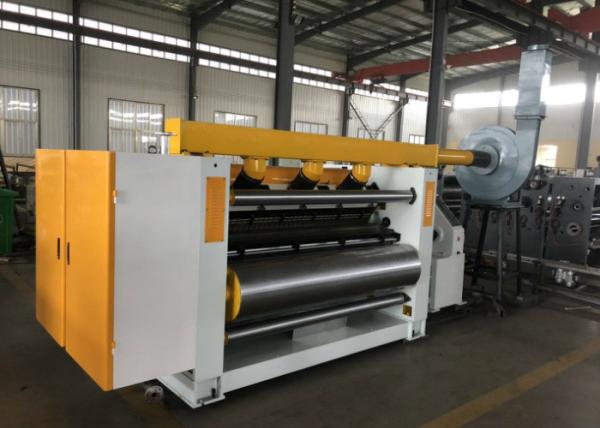

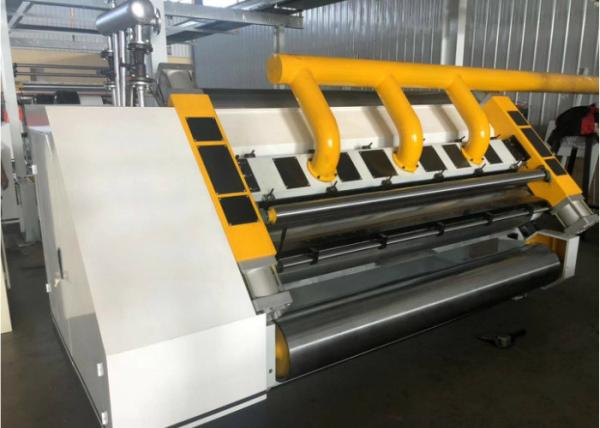

High Speed Single Facer Corrugated Machine Electric Drive Seamless Steel Pipe
High Speed Single Facer Corrugated Machine Electric Drive Seamless Steel Pipe
High Speed Single Facer Corrugated Machine Electric Drive Seamless Steel Pipe
High Speed Single Facer Corrugated Machine Electric Drive Seamless Steel Pipe
Specifications
Brand Name :
Quanheng
Model Number :
QH
Certification :
CE , ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10sets/month
Delivery Time :
30 days
Packaging Details :
Plastic packing in container
Width :
1400mm-2500mm
Speed :
80-250m/min
Power :
18KW
Drive :
Electric Drive
Color :
Customer Choose
Packing :
Custom requirement
Description

Corrugator cardboard making machine single facer machine

Main component parameters

1- corrugated roller diameter: Ø 280mm

2- pressure roller diameter: Ø 290mm 45 # seamless steel pipe quenching treatment

3- diameter of smearing roller: Ø 215mm; 45 # seamless steel pipe surface after special pattern engraving and chrome plating

4- diameter of Dinghu roller:Ø 120mm,seamless steel pipe 20 #

5- preheating roller diameter: Ø 320mm; 20G steel; origin: Baotou steel

Equipment characteristics

1- Guide paper using wind adsorption, maintain the stability of corrugated type at high speed.

2- by the fan through the vacuum box to absorb corrugated paper in the range of 180 degrees to form a negative pressure area, to complete the corrugated rolling.

3-l ower corrugated roller suction groove width is not more than 2.0 - 2.5 mm, can reduce the single-sided corrugated cardboard dry paper traces.

4- transmission adopts universal shaft transmission, isolation vibration source, make the transmission more stable, reliable operation, higher maintenance.

5- reducer oil lubrication, closed gear transmission, reduce the vibration of the machine.

6- using circulation glue supply, pneumatic glue and reset, with buffer effect.

7- electric adjustment of coating width, convenient and fast.

8- on the surface of the rubber roller after special pattern engraving and chrome plating.

Raw materials and outsourcing standard parts

1- on both sides of the wallboard material: HT200; origin: Hebei

2- drive and base materials: steel plate welding , origin: Tangshan

※ Mainly purchased parts, raw materials and origin:

Name of main parts Brands or place of origin material
wallboard Production by own HT250
Transmission box hebei QT450
Corrugated roller Alloy steel corrugated
Rotation joint and Metal Hose Fujian quanzhou yujie
Main frequency motor Hebei hengshui yongshun motor factory
Reducer motor Taiwan chengbang
Bearings HRB,ZWZ,LYC
Corrugated roller and pressure roller bearing America Timken
Seat belt bearing Zhejiang wuhuan
High pressure fans Shanghai yingfa motor factory
cylinder Zhejiang sonor CSM
Solenoid valve Zhejiang sonorCSM
traps beijing Inverted bucket type
contacts France schneider
button Chint NP2 series
Air switch French Schneider
Position Sensor Japan OMRON
Frequency controller Taiwan delta
PLC Taiwan delta
Human Machine Interface Taiwan WEINVIEW or MCGS
Lose rubber pump Hebei botou
