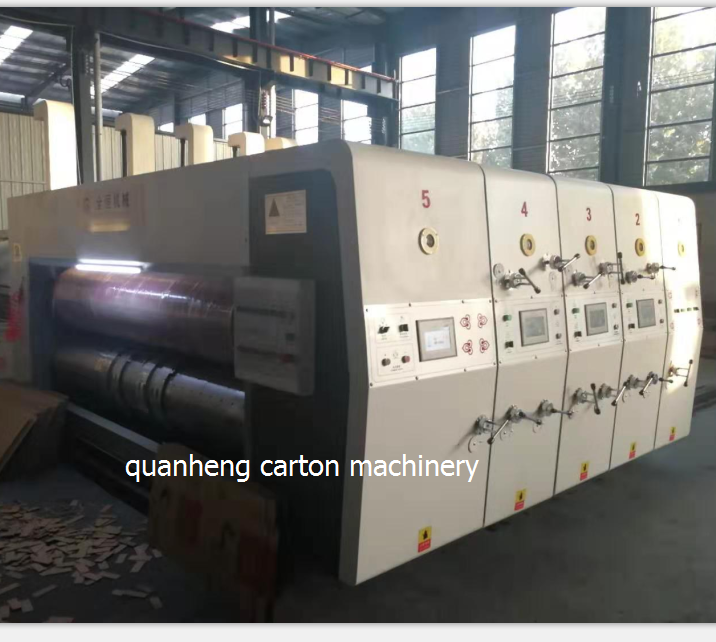

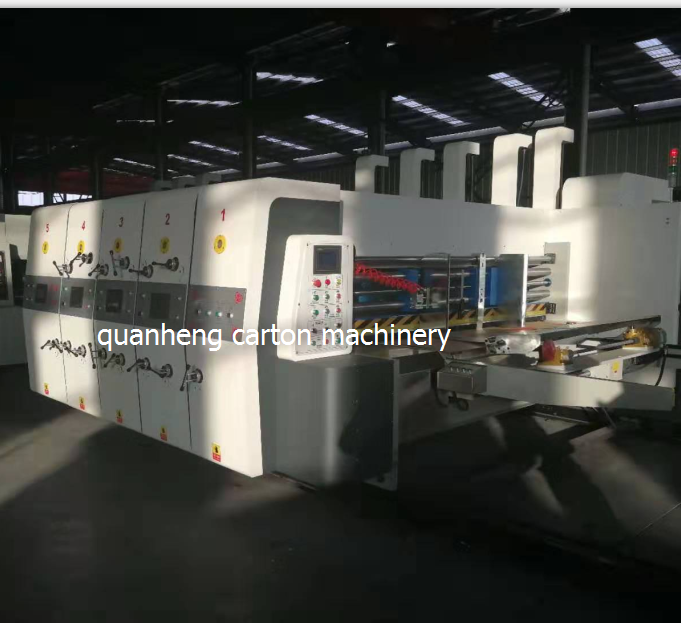

Three Colors 432mm 10mm Printer Slotter Die Cutter Machine
Three Colors 432mm 10mm Printer Slotter Die Cutter Machine
Specifications
Brand Name :
QH
Certification :
CE ISO
Place of Origin :
HEBEI
MOQ :
1 SET
Price :
USE+10000-50000+ 1 SET
Payment Terms :
L/C, T/T
Supply Ability :
100 set per year
Delivery Time :
60 days
Packaging Details :
standard
name :
printing die cutter mahcine
warranty :
12months
voltage :
220/380/440 V
keyword :
flexo printing machine
application :
corrugated cardboard
Description

High Speed Lead edge feeder Three colors Printer Die cutter machine

Die cutting unit

Die roll (lower roll):

*The outer diameter is ￠ 432mm, including ￠ 480mm.

*Surface grinding, hard chrome plating, balance correction, increase running stability.

*The spacing between the fixing screw holes of the cutter die is 100mm in the axial direction and 18 in the radial direction. Suitable for cutting die height of 25.4mm.

*Thickness of wood formwork: 16mm (for three-layer cardboard) 13mm (for five-layer cardboard)

Rubber pad roll (upper roll)

*The outer diameter is ￠ 464mm, including rubber pad ￠ 480mm.

Quick change rubber pad, wear resistance and long service life.

Surface grinding of cast steel material, hard chromium plating

*Balance correction, increase operation stability.

*The clearance between the pneumatic adjustment and the cutter die roll is 0-16mm.

*The thickness of rubber pad is 8m. Width 250mm.

*Mechanical traveling device with transverse length of 40mm. (adjustable travel speed)

Grinding mechanism:

*Electric knife type grinding rubber pad, fast and efficient correction.

*Improve the service life of rubber pad.

Phase adjustment device:

Planetary gear type construction.

*Die cutting phase button control and electric 360 degree adjustment (operation and stop can be adjusted); can be used for order storage.

*Manual adjustment of transverse position of cutter plate roller, adjustment range: 10mm

Three Colors 432mm 10mm Printer Slotter Die Cutter Machine

Three Colors 432mm 10mm Printer Slotter Die Cutter Machine
