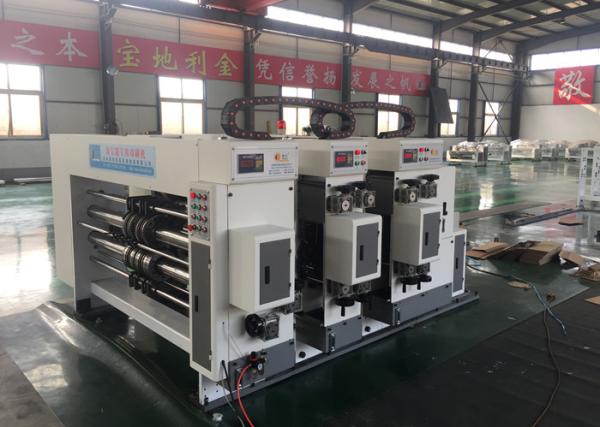

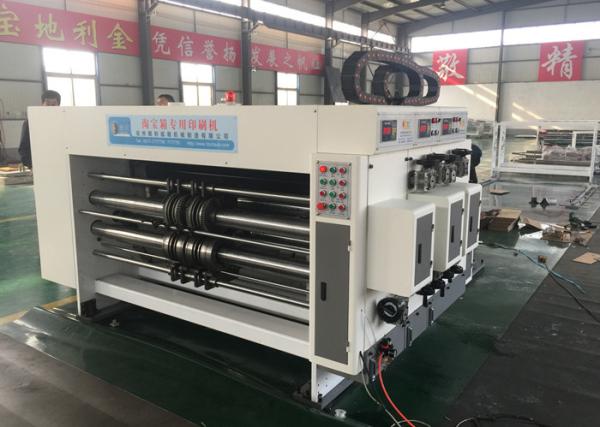

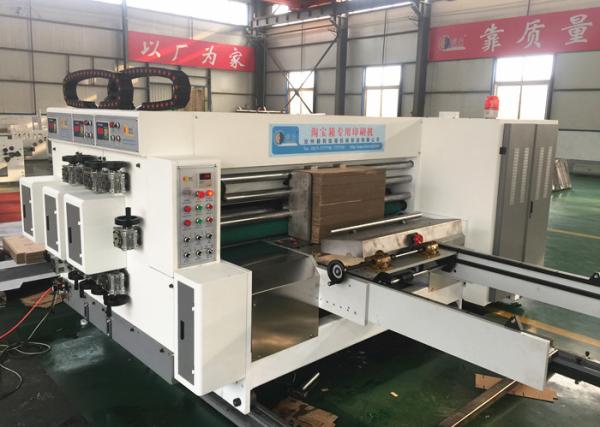

small carton lead edge feeder flexo double color printer slotter machine
small carton lead edge feeder flexo double color printer slotter machine
small carton lead edge feeder flexo double color printer slotter machine
small carton lead edge feeder flexo double color printer slotter machine
small carton lead edge feeder flexo double color printer slotter machine
small carton lead edge feeder flexo double color printer slotter machine
small carton lead edge feeder flexo double color printer slotter machine
small carton lead edge feeder flexo double color printer slotter machine
Specifications
Brand Name :
ZHAOLI
Model Number :
ZLTB-2000
Certification :
CE
Place of Origin :
HEBEI PROVINCE , CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, D/P
Supply Ability :
10 SET / MONTH
Delivery Time :
20 - 30 DAYS
Packaging Details :
plastic film packing and load to container and fixed
product name :
small carton lead edge feeder double color printer slotter machine
width between wallboard :
2000mm
max feeding size :
1700mm x 600mm
max printing size :
1600mm x 600mm
working speed :
90-120 sheets / min
warranty :
one year for whole structure
feeding way :
lead edge feeder
Description

small carton lead edge feeder double color printer slotter machine

I. Introduction

The machine adopts vacuum adsorption auxiliary paperboard feeding system (air volume is adjustable), with the function which can complete the slotting, angle-cutting, slitting, creasing etc. of corrugated paperboard in one time. Slotting depth of this machine is with electric adjustment, and equipped with the scale reading. Slotting phase adjustment is to the planetary gear structure, adopting the electric computer type 360 degrees adjustment, and the upper and lower slotting knife disc and creasing wheels can synchronous moving to left or right, (note: some special tool to adjust the movement), it is easy to use and maintenance, compact, which is a professional in view of the small carton slotting forming equipment .

II. Product Parameter

Model 2000mm
Max machine speed 60-120 pieces/min
Max feeding size (L * W) 1700mm*600mm
Max printing size (L * W) 1600mm*600mm
Min feeding size (L * W) 450mm*170mm
Min slotting interval Negative knife (A * B) 150mm*50mm
Positive knife (A * B) 80mm*80mm

Min box height (H)

Min height of box (H)

 70mm

Outer size (L * W * H)

Dimension (Length*Width*Height)

 3000mm*1700mm*1450mm
Weight 1700 KG

small carton lead edge feeder flexo double color printer slotter machine
