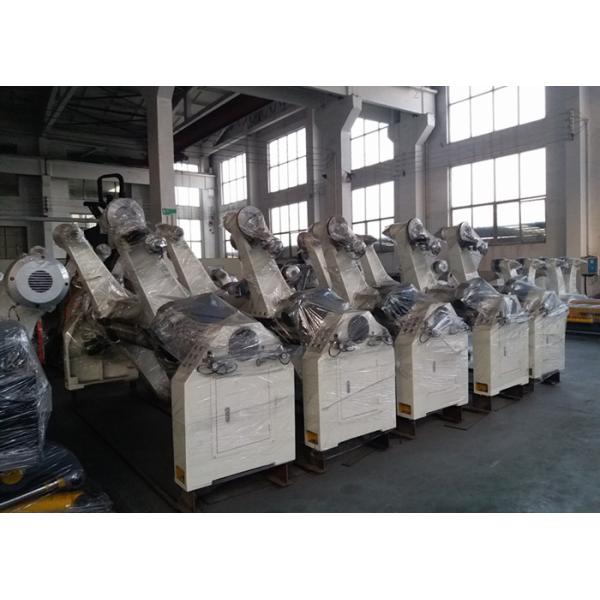

Fully Automatic 3 Layer Corrugated Cardboard Paper Machine Production Line

※ main technical parameters and requirements in production line type:

WJ100-1800-I type three layer corrugated paperboard production line:

The maximum production width of the corrugated cardboard:1800mm

Design speed:100m/min

Economic speed:60-80m/min

note:Production line speed test paper should meet the following requirements:(the surface temperature of the equipment is not less than 172℃)

﹡Paper rating of not less than B grade ﹡Paper moisture content of about:11%±2%

﹡top paper:100—250g/m² ﹡core paper:100--250g/m²

﹡corrugated paper:100—200g/m²

1. Flute-type combination:A ,C, B, E(as customers’ requirement)

2. Steam the necessary requirements:

3. amount of steam 2500—3000Kg/Hr ﹡the highest pressure:1.2Mpa

4. common pressure:0.8-1.1Mpa

5. power supply:380V 50Hz Three-phase four-wire system

6. equipment installed total power:about120KW

7. The actual power consumption:about 60KW(full speed)

8. equipment covers:about40m×10m×5m(Specific length of foundation Figure prevail)

9. Equipment out of paper orientation:According to the user to determine the transmission plant set left or right position

10. Equipment applicability,Available in A, B, C class domestic or imported paper Paper

package:

plastic film for main parts, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixed with container.according to customer requirements. according to customer requirements.

The normal package is plastic film(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request.

RFQ:

1.Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 20 years.(with export license)

2.Q: Where is your factory located? How can I visit here?
A: Our factory is located in zhuwa industrial area south of Dongguang county, Cangzhou City, Hebei province, China. It is about 2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station We can pick you up if you need, welcome to visit our factory.

3.Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipments.

4.Q: How does your factory do regarding quality controlling?
A: We have one year warranty for whole machine, not including easy-damage parts.

Any questions, contact with me!
