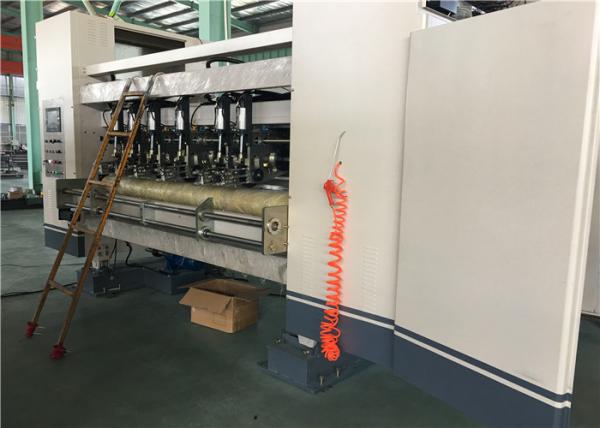

zero scorer automatic full computer control thin blade slitter scorer corrugated carton machine

​Structural features:​

• Synchronous servo motor control row of knives, cable. Automatic reset. Precise dimensions.change order time 3-8 seconds,the two machines can be achieved with no slow down immediately for a single memory of 999 order,non-stop automatic change order or manual change order can be realized.

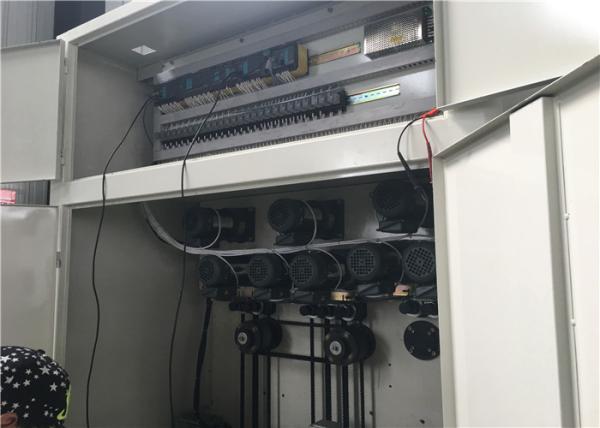

• Schneider M258PLC control system, using CANopen line system, with order management capabilities, with the dryer speed synchronous signal input.
• HMI with 10.4-inch color touch screen, storage 999 orders, change orders automatically or manually for a single, fault alarm.
• Three kinds of pressure line forms: Convex against the concave(three layers line), Convex against the concave(five layers line), Convex against Flat , Three kinds of electric pressure line forms can be converted. Crimping round shades by computer control, linear, and easy to bend.
• Using thin tungsten alloy steel knife, sharp blade, long life of more than 8 million meters.
• knife sharpener for computer control, automatic or manual knife sharpener, Cutting edge sharpening can be divided, improve productivity Efficiency.
• Imported synchronous drive system, precision accurate, long life, low noise operation.

.

Technical parameters:

• MAX working width: according to customer's requirement
• operation direction: left or right (Determined in accordance with customer plant)
• the highest machinery speed: 200m/min
• Mechanical configuration: Zero pressure line thin blade slitter scorer 5 knives 8 lines
• The minimum width of the cutter: 135mm
• The minimum distance between the indentation : 0mm
• Cutter wheel positioning accuracy: ±0.5mm
