Corrugated Box Creasing Carton Die Cutting Machine Reliable Safety Protection System
Corrugated Box Creasing Carton Die Cutting Machine Reliable Safety Protection System
Corrugated Box Creasing Carton Die Cutting Machine Reliable Safety Protection System
Corrugated Box Creasing Carton Die Cutting Machine Reliable Safety Protection System
Specifications
Brand Name :
ZHAOLI
Model Number :
ML
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
20 days after receive deposit
Packaging Details :
ML-1300 flat bed corrugated box creasing carton die cutting machine : plastic film
product name :
ML-1300 flat bed corrugated box creasing carton die cutting machine
function :
paper die cutting and creasing
automatic type :
manual
working material :
corrugated cardboard, cardboard, paper, leather
machine wirght :
2000kg
model :
ML
other name :
ML-1300 flat bed corrugated cardboard creasing carton die cutting machine
Description

ML-1300 Flat Bed Corrugated Box Creasing Carton Die Cutting Machine

Machine feature:

Four insurances make the machine more safety and reliable : Dragon insurance; triangular insurance; handle insurance; photoelectric switch insurance

Four functions: single pressing & cutting; continuous creasing & cutting; delay; counting

Machine introduction ML-1300 Flat Bed Corrugated Box Creasing Carton Die Cutting Machine:

1. Sliding bearing adopts the high quality casting copper alloy, wear-resisting and damped.

2. The machine is made of high quality materials and whole casting , high strength, good rigidity.

3. With single creasing & cutting, continuous creasing & cutting and open delay three functions, the delay range can adjust at will.

4. The safety protection system is reliable .

5. High fly-wheel torque .

6. Single type electromagnetic clutch is sensitive and reliable .

7. Operating height is designed reasonable, the pressure frame can open big angle .

8. Adopting electric sucked type brake clutch, sensitive brake, high insurance coefficient , high safety performance etc.

Adopting adjustable frame on the template, convenient to disassemble and install the plate .

Technology parameter ML-1300 Flat Bed Corrugated Box Creasing Carton Die Cutting Machine:
Model Max working size Working speed Creasing & cutting length Weight Dimension Power
ML-750 750X520mm 28±2 strokes/min <15m 2000kg 1.26x1.35x1.28m 2.2kw
ML-930 930x670mm 23±2 strokes/min <25m 3000kg 1.67x1.67x1.63m 4.0kw
ML-1100 1100x800mm 20±2 strokes/min <32m 4500kg 1.9x1.8x1.7m 4.0kw
ML-1200 1200x830mm 20±2 strokes/min <35m 4800kg 1.9x2x1.7m 4.0kw
ML-1300 1300X920mm 18±2 strokes/min <40m 6000kg 1x2.4x1.8m 5.5kw
ML-1400 1400x1000mm 18±2 strokes/min <45m 6500kg 2x2.45x1.9m 5.5kw
ML-1500 1500x1050mm 18±2 strokes/min <45m 7000kg 2x2.5x1.95m 5.5kw
ML-1600 1600x1250mm 16±2 strokes/min <50m 11000kg 2.2x2.6x2.2m 11kw
ML-1800 1800x1300mm 16±2 strokes/min <62m 13500kg 2.3x2.8x2.2m 15kw
ML-2000 2000x1400mm 14±2 strokes/min <70m 15000kg 2.4x35x2.2m 17kw

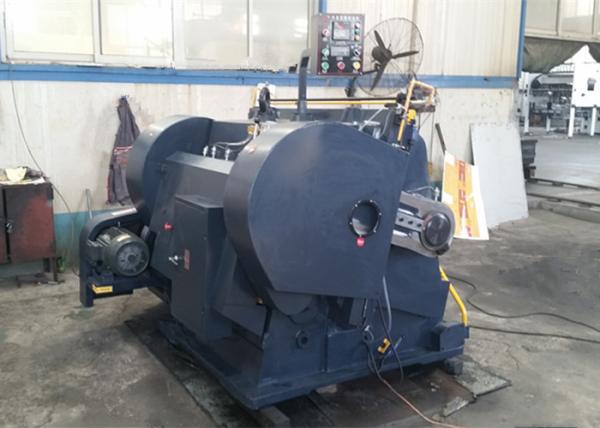

Production picture ML-1300 Flat Bed Corrugated Box Creasing Carton Die Cutting Machine:

Corrugated Box Creasing Carton Die Cutting Machine Reliable Safety Protection System
