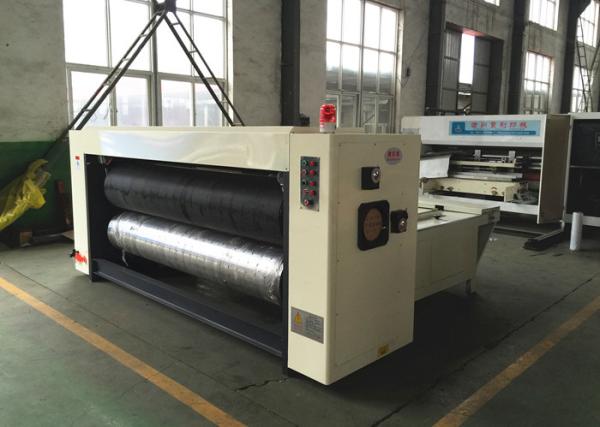

4.0 KW Main Motor Power Carton Die Cutting Machine Rotary Die Cutter Forming Machine
4.0 KW Main Motor Power Carton Die Cutting Machine Rotary Die Cutter Forming Machine
4.0 KW Main Motor Power Carton Die Cutting Machine Rotary Die Cutter Forming Machine
4.0 KW Main Motor Power Carton Die Cutting Machine Rotary Die Cutter Forming Machine
4.0 KW Main Motor Power Carton Die Cutting Machine Rotary Die Cutter Forming Machine
4.0 KW Main Motor Power Carton Die Cutting Machine Rotary Die Cutter Forming Machine
4.0 KW Main Motor Power Carton Die Cutting Machine Rotary Die Cutter Forming Machine
4.0 KW Main Motor Power Carton Die Cutting Machine Rotary Die Cutter Forming Machine
Specifications
Brand Name :
ZHAOLI
Model Number :
MR1600 MR1800 MR2000 MR2200 MR2400
Certification :
CE
Place of Origin :
HEBEI PROVINCE , CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, Western Union
Supply Ability :
10 SETS / MONTH
Delivery Time :
20-30 DAYS

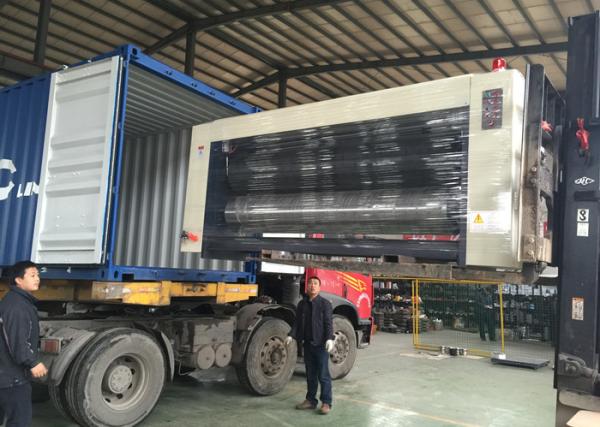

Packaging Details :
plastic film packing and load to container , fixed with steel wire rope
product name :
semi auto carton rotary die cutter forming machine
working speed :
60 sheets / min
thickness of cardboard :
3-5 layer corrugated cardboard
warranty :
one year for whole structure
payment :
T/T
container :
one 20GP container
Description

semi auto carton rotary die cutter forming machine

Specification :

  • Adopt chain sending paper.
  • Roller adopt automatic equipment transverse moving 40mm.
  • Adopt different speed equipment,automatic adjust upper roller line speed.
  • Grinding-cutting adopt Taiwan splendid gluing boot.
  • Install upper roller automatic repairing function.
  • This machine finished cutting,scorer,cut corner etc function one time.

Technological Parameter :

Model MR1600 MR1800 MR2000 MR2200 MR2400
Mechanical max speed 60 sheets/ min
Max feeding size 1350×1600mm 1350×1800mm 1350×2000mm 1350×2200mm 1350×2400mm
Min feeding size 350×600 mm 350×600 mm 350×600 mm 350×600 mm 350×600 mm
The thickness of cardboard 3-5 ply corrugated paperboard
Max cutting size 1200×1500mm 1200×1700mm 1200×1900mm 1200×2100mm 1200×2300mm
Main Motor Power 4.0 KW
