High Flywheel Torque Die Cutting Punching Machine / Flat Bed Die Cutting Machine
High Flywheel Torque Die Cutting Punching Machine / Flat Bed Die Cutting Machine
Specifications
Brand Name :
ZHAOLI
Model Number :
ML
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
20 days after receive deposit
Packaging Details :
ML-1300 flat bed corrugated cardboard creasing carton die cutting machine : plastic film
product name :
ML-1300 flat bed corrugated cardboard carton die cutting machine
function :
paper die cutting and creasing
automatic type :
manual
working material :
corrugated cardboard, cardboard, paper, leather
machine wirght :
2000kg
model :
ML
other name :
ML-1300 flat bed corrugated cardboard creasing carton die cutting machine
Description

ML-1300 Flat Bed Corrugated Cardboard Creasing Carton Die Cutting Machine

Machine feature:

Four insurances make the machine more safety and reliable : Dragon insurance; triangular insurance; handle insurance; photoelectric switch insurance

Four functions: single pressing & cutting; continuous creasing & cutting; delay; counting

Standard Configuration :

Manual oil supply, concentrated oil or computer automatic oil supply configuration can be customized frequency control of motor speed.

Machine introduction:

1. Sliding bearing adopts the high quality casting copper alloy, wear-resisting and damped.

2. The machine is made of high quality materials and whole casting , high strength, good rigidity.

3. With single creasing & cutting, continuous creasing & cutting and open delay three functions, the delay range can adjust at will.

4. The safety protection system is reliable .

5. High fly-wheel torque .

6. Single type electromagnetic clutch is sensitive and reliable .

7. Operating height is designed reasonable, the pressure frame can open big angle .

8. Adopting electric sucked type brake clutch, sensitive brake, high insurance coefficient , high safety performance etc.

Adopting adjustable frame on the template, convenient to disassemble and install the plate .

Technology parameter:
Model Max working size Working speed Creasing & cutting length Weight Dimension Power
ML-750 750X520mm 28±2 strokes/min <15m 2000kg 1.26x1.35x1.28m 2.2kw
ML-930 930x670mm 23±2 strokes/min <25m 3000kg 1.67x1.67x1.63m 4.0kw
ML-1100 1100x800mm 20±2 strokes/min <32m 4500kg 1.9x1.8x1.7m 4.0kw
ML-1200 1200x830mm 20±2 strokes/min <35m 4800kg 1.9x2x1.7m 4.0kw
ML-1300 1300X920mm 18±2 strokes/min <40m 6000kg 1x2.4x1.8m 5.5kw
ML-1400 1400x1000mm 18±2 strokes/min <45m 6500kg 2x2.45x1.9m 5.5kw
ML-1500 1500x1050mm 18±2 strokes/min <45m 7000kg 2x2.5x1.95m 5.5kw
ML-1600 1600x1250mm 16±2 strokes/min <50m 11000kg 2.2x2.6x2.2m 11kw
ML-1800 1800x1300mm 16±2 strokes/min <62m 13500kg 2.3x2.8x2.2m 15kw
ML-2000 2000x1400mm 14±2 strokes/min <70m 15000kg 2.4x35x2.2m 17kw

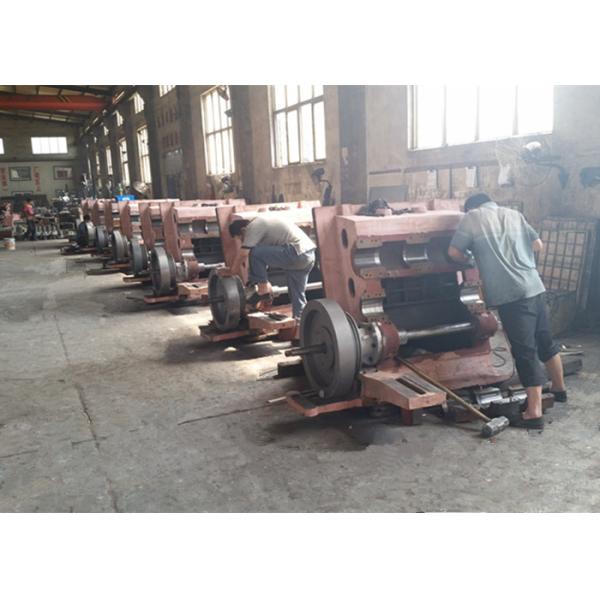

Production picture:

High Flywheel Torque Die Cutting Punching Machine / Flat Bed Die Cutting Machine
