1600 Model Corrugated Carton Machine Full Hydraulic Type Motion Fit Paper Roll Stand
1600 Model Corrugated Carton Machine Full Hydraulic Type Motion Fit Paper Roll Stand
Specifications
Brand Name :
ZHAOLI
Model Number :
YYZJ
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
30 SETS PER MONTH
Delivery Time :
30 days after receive deposit
Packaging Details :
plastic film
product name :
1600 model hydraulic mill roll stand corrugated carton machine
funtion :
paper roll stand
machine weight :
2500kg
working size :
1400mm, 1600mm, 1800mm, 2000mm
model :
1400,1600,1800,2000
power :
hydarulic
Description

1600 Model Hydraulic Mill Roll Stand Corrugated Carton Machine

Feature:

1. Symmetric structure can install two bundle of paper tube at the same time, can change paper assignments without stopping .

2. Adopts full hydraulic drive to complete the original paper clamping, loosen, move on to match and translation to right & left these motions and so on, original paper lifting adopts hydraulic drive.

3. With two-stage inflatable paper carrying head , paper carrying head is 34 inch double type.

Multipoint pneumatic brakes.

Technology parameter
Original paper shaft motion type full hydraulic type motion
Working size 1600mm
Paper carry width max 1600mm, min 800mm
Paper carry diameter max Φ1500mm
Max loading weight for single side max 2000 Kg
Main roller diameter of paper shaft Φ242mm
Air source working pressure 0.6 - 0.8 Mpa
Working power supply 380v/3phase/50hz
Machine dimension 3.8x1.6x1.65m

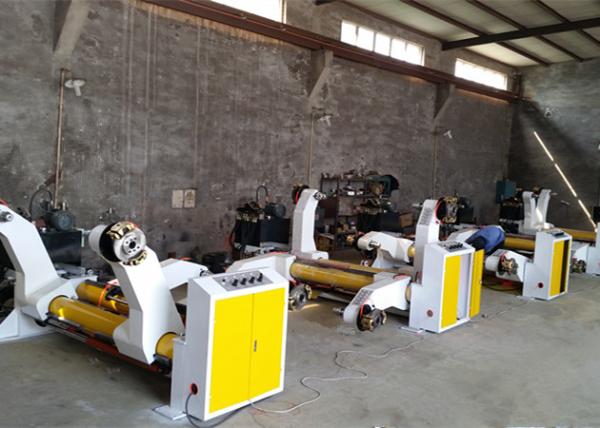

Machine pictures:
1600 Model Corrugated Carton Machine Full Hydraulic Type Motion Fit Paper Roll Stand
