Rotary Slotter Creasing Corner Cutting Machine Full Steel Processed Slotting Knife Discs
Rotary Slotter Creasing Corner Cutting Machine Full Steel Processed Slotting Knife Discs
Rotary Slotter Creasing Corner Cutting Machine Full Steel Processed Slotting Knife Discs
Rotary Slotter Creasing Corner Cutting Machine Full Steel Processed Slotting Knife Discs
Rotary Slotter Creasing Corner Cutting Machine Full Steel Processed Slotting Knife Discs
Rotary Slotter Creasing Corner Cutting Machine Full Steel Processed Slotting Knife Discs
Specifications
Brand Name :
ZHAOLI
Model Number :
GM-1350
Certification :
CE
Place of Origin :
HEBEI PROVINCE , CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5 sets / month
Delivery Time :
20-30 days
Packaging Details :
plastic film packing and load to the container and fixed with steel wire rope or with steel packing
product name :
Amazon delivery carton automatic slotting creasing corner-cutter machine
function :
slotting , creasing , corner-cutting
cardboard type :
3 layer or 5 layer corrugated carton
process width :
1400mm , 1600mm
working speed :
60-90 sheets/min
warranty :
1 year for whole machine
Description

just for small corrugated carton automatic rotary slotter creasing corner-cutter machine

electric adjust the box height and phase , manual adjust the movement of blades , don't need to install , very convenient , suitable for small workshop to produce the small carton .

Main Structure And Function Characteristics

1. Paper feeding roller adopts patterned roller, feeding roller pressure adopts eccentric wheel adjustment with left and right eccentric wheels, can adjust the pressure synchronously .

2. Back kick feeding department adopts both sides and back baffles to fasten paperboard, to avoid the slotting error to make upper paperboard misplace when pushing paperboard, can fit to each kinds of paperboard with different quality , and sending paper stable and accurate.

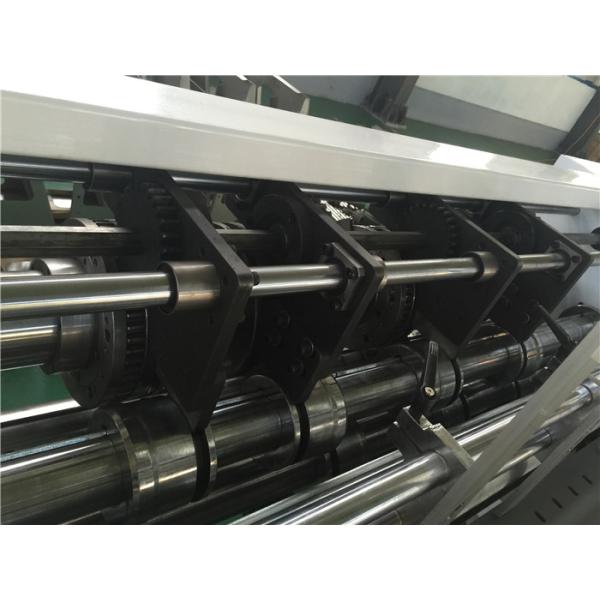

3. Slotting knife discs adopt full steel processed , slotting knives adopt sawtooth arc-shaped semicircle knives to slot and remove the waste, paperboard get into slitting roller after slotting, slitting knives cut both sides of the paperboard neatly . ( note : pressing wheel and slitting knives are installed in same roller, convenient to adjust )

Product Parameter

Model 1600
Machine max speed 80-100 pieces/min
Max feeding size (L×W) 1600mm×600mm
Min feeding size (L×W) 500mm×180mm
Min slotting interval Negative knife (A×B) 150mm×50mm
Positive knife (A×B) 80mm×80mm
Min height of box (H) 70mm
Dimension (Length*Width*Height) 2700mm×1500mm×1280mm
Weight 1500 KG

Rotary Slotter Creasing Corner Cutting Machine Full Steel Processed Slotting Knife Discs
