Used Making Corrugated Box Water ink Flexo Printer Slotter Machine
Used Making Corrugated Box Water ink Flexo Printer Slotter Machine
Used Making Corrugated Box Water ink Flexo Printer Slotter Machine
Used Making Corrugated Box Water ink Flexo Printer Slotter Machine
Specifications
Brand Name :
ZHAOLI
Model Number :
ZL - 2000
Certification :
CE
Place of Origin :
China (mainland )
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 Sets Per Month
Delivery Time :
30-60 work Days
Packaging Details :
Plastic Packaging The whole machine is wrapped with PE films , loading 20 '' container fixed well with steel wires rope
Name :
Making Small Box Printing Slotting Machine
Material :
Cast Steel
Model :
ZL - 2000
Machine Speed :
120 PCS / MIN
Max Feeding Area :
1700 * 600 mm
Max Printing Area :
1600 * 600 mm
Min Feeding Area :
450 * 170 mm
Min Slotting Interval :
150 * 50 *150 * 50 mm
Min Height Of Box :
70 mm
Dimesion Of Machine :
3600 * 2100 * 1700 mm
Description

Used Making Corrugated Box Water ink Flexo Printer Slotter Machine

The machine features

1. Feeding paper roller adopt patterned roller, feeding paper roller pressure adjustment adopt adjust and left-right adjust the pressure synchronous

2. Pushing paperboard department adopt both sides baffle and latter baffle to fasten paperboard, to avoid the slotting error when pushing paperboard which make upper paperboard misplace, can fit to every kinds paperboard, and sending paper stable and accurate.

3. Paperboard is send out by six transmit shaft after slotting, corner-cutting, slitting, pressing, this machine power equipped with the frequency conversion speed regulator (speed adjustable freely), adopt Jintiao frequency converter.

4. This machine adopt electric planetary gear phase to adjust paperboard size, can adjust without stopping.

The Technological parameter

Technology Parameter
Model 2000
Max machine speed 120 pieces/min
Max feeding area (L * W) 1700mmX600mm
Width of printing roller 1600mm
Min feeding area (L * W) 450mmX170mm
Min slotting interval Negative knife (A * B) 150mmX50mm
Positive knife (A * B) 80mmX80mm
Min height of box (H) 70mm
Dimension (Length*Width*Height) 3200mmX2500mmX1680mm
Weight 4500 KG

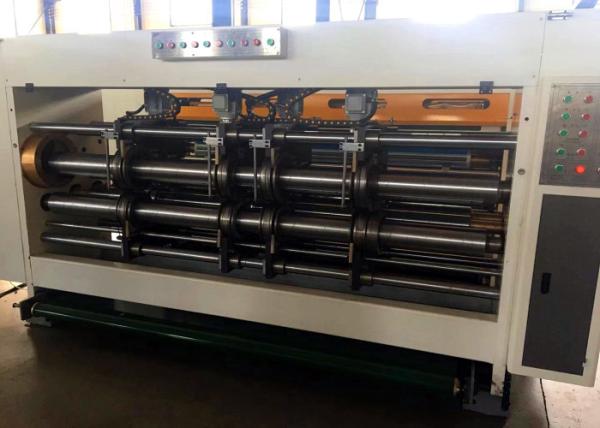

The Printing slotting machine Photos

Used Making Corrugated Box Water ink Flexo Printer Slotter Machine
