Flexo Printing Slotting Machine / Automatic Feeding Water Ink Printing Box Packing Machine
Flexo Printing Slotting Machine / Automatic Feeding Water Ink Printing Box Packing Machine
Specifications
Brand Name :
ZHAOLI
Model Number :
ZL - 2000
Certification :
CE
Place of Origin :
China (mainland )
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets Per Month
Delivery Time :
30-40 work Days
Packaging Details :
Plastic Packaging The whole machine is wrapped with PE films , loading 20 '' container fixed well with steel wires rope
Name :
Making Small Box Printing Slotting Machine
Material :
Cast Steel
Model :
ZL - 2000
Machine Speed :
120 PCS / MIN
Max Feeding Area :
1700 * 600 mm
Max Printing Area :
1600 * 600 mm
Min Feeding Area :
450 * 170 mm
Min Slotting Interval :
150 * 50 *150 * 50 mm
Min Height Of Box :
70 mm
Dimesion Of Machine :
3600 * 2100 * 1700 mm
Description

Flexo Printing Slotting Machine / Automatic Feeding Water Ink Printing Making Small Box Packing Machine

The printing unit

1. High quality Φ216mm thick seamless steel tube which is surface grinding and hard chrome - plating.

2. High quality Φ136mm 220 mesh steel anilox roller which is made by Tengda Dalian.

3. Using Φ86mm rubber roller Producted by Chunfeng Jizhou. It is well wear-resisting, oil resistance and acid and alkali resistant. The roller is in highly grinding so it is highly printing precision .

4. The pressing adjustment of printing roller adopt high precision crosshead shoe gapless adjustment to do the slight adjustment, can make the printing pressure reach best condition.

5. Using 360°electric phase, printing motor button phase adjust mechanism adopt planetary gear structure, can freely adjust machine work or stop 360°by electric button when machine running.

6 Ink pump provide ink automatically, lift printing plate by hand. also with the automatic ink distribution system, which avoid the bad influence to the printing result when ink dry out because of machine stop running. Used 1.2inch PVC ink-back tube, smooth tube wall avoid ink-stuff up and sticking, can send the ink to ink bucket in time to avoid ink-leak phenomenon.

The Technological parameter

Technology Parameter
Model 2000
Max machine speed 120 pieces/min
Max feeding size (L * W) 1700mmX600mm
Width of printing roller 1600mm
Min feeding size (L * W) 450mmX170mm
Min slotting interval Negative knife (A * B) 150mmX50mm
Positive knife (A * B) 80mmX80mm
Min height of box (H) 70mm
Dimension (Length*Width*Height) 3200mmX2500mmX1680mm
Weight 4500 KG

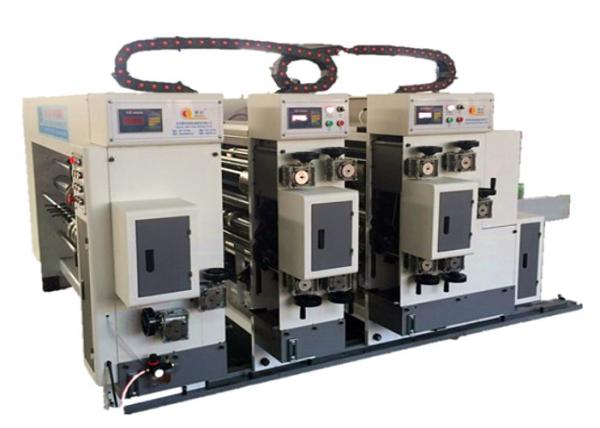

The Printing slotting machine Photos

Flexo Printing Slotting Machine / Automatic Feeding Water Ink Printing Box Packing MachineFlexo Printing Slotting Machine / Automatic Feeding Water Ink Printing Box Packing Machine
