Frequency Adsorb Automatic Corrugated Paperboard Partition Machine / Cardboard Slotting Machine
Frequency Adsorb Automatic Corrugated Paperboard Partition Machine / Cardboard Slotting Machine
Frequency Adsorb Automatic Corrugated Paperboard Partition Machine / Cardboard Slotting Machine
Frequency Adsorb Automatic Corrugated Paperboard Partition Machine / Cardboard Slotting Machine
Specifications
Brand Name :
Zhaoli Brand
Model Number :
GBJ 1000mm
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3000 - 5000 Per Set
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets Per Month
Delivery Time :
25- 30 work days
Packaging Details :
Plastic Packing
Product Name :
Automatic Corrugated board Partition Machine
Material :
Cast iron
Model :
GBJ 1000 * 300 / 400 / 600 mm
Min Slot Distance :
45 mm
Slotting number :
9 groups of slotting knives
speed :
120 pcs / min
Three phase motor :
380v 1.1 kw
Slotting width :
3.5 5 7 mm
Description

Frequency Adsorb Automatic Corrugated Paperboard Partition Machine / Cardboard Slotting Machine

The partition machine features

Choose the corrugated paperboard which you want to process, adjust the side feeding baffle .

Adjustment method : loose the screws in circle of below picture, move the two side feeding baffles right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .

The machine technological parameter

Paperboard feeding type Automatic back kick feeding type
Paperboard processing range 1 Max 1000*280mm Min 100*75mm
Paperboard processing range 2 Max 1000*380mm Min 100*90mm
Paperboard processing range 3 Max 1000*600mm Min 180*140mm
Min slotting distance 45mm
Slotting number 9 groups of slotting knives
Slotting width

3.5mm 5mm 7mm

(choose one according to the thinkness of paperboard)
Working speed 120 piece/min
Three-phase motor 380V 1.1kw
Overall dimension 1500mm*1450mm*1300mm

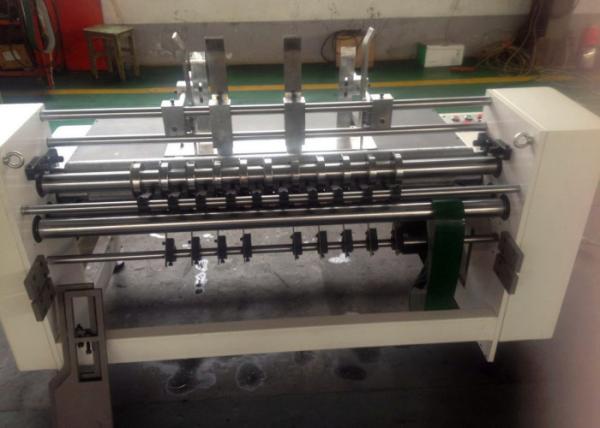

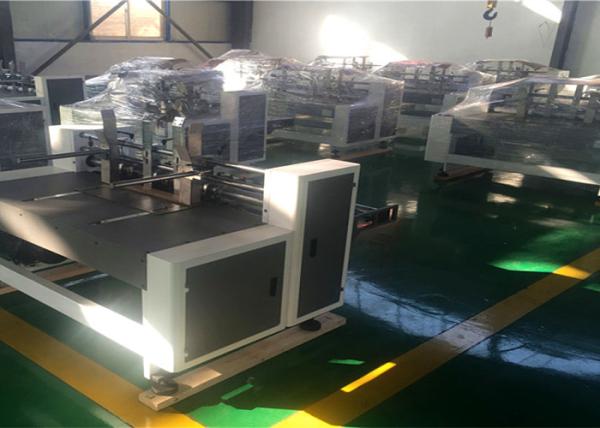

The machine Pictures (automatic partition machine)

Frequency Adsorb Automatic Corrugated Paperboard Partition Machine / Cardboard Slotting Machine Frequency Adsorb Automatic Corrugated Paperboard Partition Machine / Cardboard Slotting Machine
