Fully Automatic Flute Laminating Machine For Cartons With Famous Brand Electric
Fully Automatic Flute Laminating Machine For Cartons With Famous Brand Electric
Fully Automatic Flute Laminating Machine For Cartons With Famous Brand Electric
Fully Automatic Flute Laminating Machine For Cartons With Famous Brand Electric
Specifications
Brand Name :
ZL
Model Number :
1300, 1500, 1600
Certification :
CE
Place of Origin :
Hebei China
MOQ :
1
Price :
USD + Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
20 days
Packaging Details :
plasctic packing and fixed in the container, 1 set needs one big container
Machine Color :
Customized
Speed :
6000 sheets per hour
Laminating Precision :
+-1.5
Power :
10 kw
Min feeding size :
400x400mm
Weighgt :
around 5000kgs
Description

Fully Automatic Flute Laminating Machine For Cartons With Famous Brand Electric

Description:

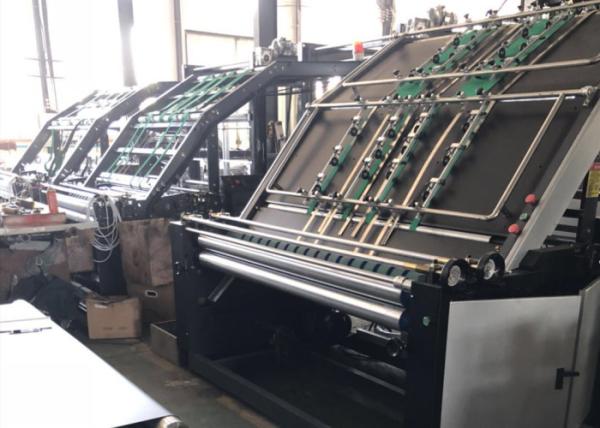

The flute laminating machine is to glue facial paper and corrugated board together. The bottom paper must be corrugated board. The top paper should be 150-600g, the bottom paper can be two layer, three layer, four layer and five layer, flute can be A/B/C/E, not more than 12mm thick. This machine is very popular and used widely.

Features:

  • The flute laminating machine uses touch screen control, PLC, servo motor control system, the electric is famous brand, circuit system is stable. It can dispaly the failure alarm automatically, very safe.
  • The vacuum suction type feeding can feed the paper into the machine accurately, also the facial paper is stacking automatically.
  • The bottom paper is vacuum suction feeding, accdording to the speed of the facial paper, it can catch up it automatically.
  • Automatic gluing and glue cycling can avoid glue waste.The glue roller is easy to clean.
  • The counting section can record the quantity of work you have done.

Main specification:

model 1300 1500 1600
max feeding size 1300x1100mm 1500x1100mm 1600x1250mm
min feeding size 400x400mm 400x400m 400x400mm
speed 100 pcs/min 100 pcs/min 100 pcs/min
precision ±1.5 ±1.5 ±1.5
power 10kw 12kw 12kw
dimension 10x2x2.4m 10x2.15x2.4m 10x2.25x2.4m
weight 5t 6t 6t

Fully Automatic Flute Laminating Machine For Cartons With Famous Brand Electric
