Flexo Printing Slotting Die Cutting with Automatic Carton Box Packing Machine
Flexo Printing Slotting Die Cutting with Automatic Carton Box Packing Machine
Flexo Printing Slotting Die Cutting with Automatic Carton Box Packing Machine
Flexo Printing Slotting Die Cutting with Automatic Carton Box Packing Machine
Specifications
Brand Name :
Zhaoli Brand
Model Number :
2400 * 1600 mm
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 20000 - 80000 Per Set
Payment Terms :
L/C, D/A, T/T, D/P
Supply Ability :
5 Set Per Month
Delivery Time :
30- 60 work days
Packaging Details :
Plastic Packing . The every parts of machine all wrapped with PE film and put into Container Use steel wire rope to fix well
Machine Product :
Automatic Flexo Printing slotting machine
Model :
2400 * 1600 mm
Max Feeding area :
2400 * 1600 mm
Max Printing area :
2200 * 1600 mm
Machine colors :
gray or as customers wish
max speed :
150 pcs / min
Description

Flexo Printing Slotting Die Cutting with Automatic Carton Box Packing Machine

The machine Features

1 Use Schneider electric appliances or other famous brand .

2 Vertical gears driving , all gears through high quenching .

3 All the axles are chromed - plated and increase the bearings hardness and strengthen .

4 Use shower type circular lubricating all the gears .

5 Back to zero automatically .

6 Use Mould units designing .

7 The side baffle of feeding unit and slotting unit all adjust by electric .

8 Using PLC touching screen control and frequency converter precisely .

The machine main parameter

Parameter Unit Specification (1600 * 2400 mm )
Width of inside machine mm 2600
Machine wall thickness mm 50
Max Production speed pcs /min 150
The Printing roller diameter mm 530
Max size of feeding mm 1600 * 2400
Min size of feeding mm 420 * 700
Feeding paper by skip mm 1600 * 2300
Max Printing size mm 1600 * 2200
Precision of process printing mm

±0.75
Thickness of printing standard mm 7.2
Thickness of paperboard mm 3-9
Min slot space mm 300 * 100 * 300 * 100
Precision of slot mm

±1
Max depth of slot mm 300
Printing roller axle circle - oriented regulating degree 360 degree revolving
Printing roller axle - oriented regulating mm

±10
Total Power kw 22
Total weight of machine about kg 22000 kg

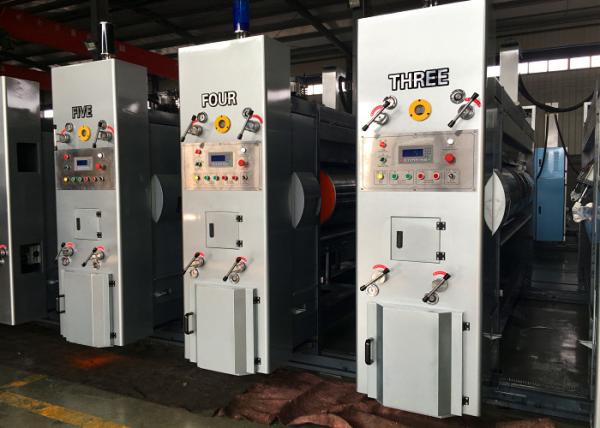

The machine real picture ( the slotting unit computer control )

Flexo Printing Slotting Die Cutting with Automatic Carton Box Packing Machine
