Model 2800 * 1600 mm Automatic Corrugated Flexo Printing Slotting Machine
Model 2800 * 1600 mm Automatic Corrugated Flexo Printing Slotting Machine
Model 2800 * 1600 mm Automatic Corrugated Flexo Printing Slotting Machine
Model 2800 * 1600 mm Automatic Corrugated Flexo Printing Slotting Machine
Specifications
Brand Name :
ZhaoLi Brand
Model Number :
Model 2800 * 1600 mm
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 5900 Per Set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3 Set Per Month
Delivery Time :
60-80 Work Day
Packaging Details :
Plastic Packing , Put into container and use steel wire rope to fix well
Product Name :
Lead Edge Feeding Flexo Multicolors Printing Slotting Machine
Model :
2800 * 1600 mm
Max Feeding Paperboard Size :
2600 * 1600 mm
The Printing Roller Diameter :
530mm
The Printing Precisioin :
±1 mm
The Slotting Presicion :
±1.5 mm
The Machine Wall Thickness :
50mm
speed :
150 pcs / min
Description

Model 2800 * 1600 mm Automatic Corrugated Flexo Printing Slotting Machine

The flexo printer slotter machine function and feature

1 The electrical appliances all adpot the famous brand electrical appliances . such as servo moter , PLC , Phase and so on .

2 The main drive gears adopt 40 Gr 20GrMoTi high frequency quenching finishing .

3 All shaft chrome plating processing ,enchance show that surface hardness .

4 Host motor machine adpots PLC man - machine interface control , the host using variable frequency drive .

5 Gear using circulating spary lubrication drive .

6 Feed department optional front paper board .

7 Module design , multicolor printing unit arbitrary combination .

The automatic water ink printer slotter machine main parameter .

Item 2800 * 1600 model type
Wallboard medial width 50 mm
The diameter of the anilox 530 mm
Max feeding paperboard size 2800 mm*1600 mm
Max effective printing size 2600 mm*1600 mm
Min process paperboard size 350 mm*700 mm
Thickness of the printing plank 7.2 mm
Max speed 150 pieces/min
Economical speed 120 pieces/min
Precision of the printing ±1 mm
Precision of the slotting ±1.5 mm
Max depth of slotting 300 mm
Min grooving space 300mm*100mm*300mm*100mm
Printing rolling axle circle-oriented regulating 360 degree revolving
Printing rolling axle-oriented regulating +/-10mm
Power 22 kw
Power supply as customer’s wish

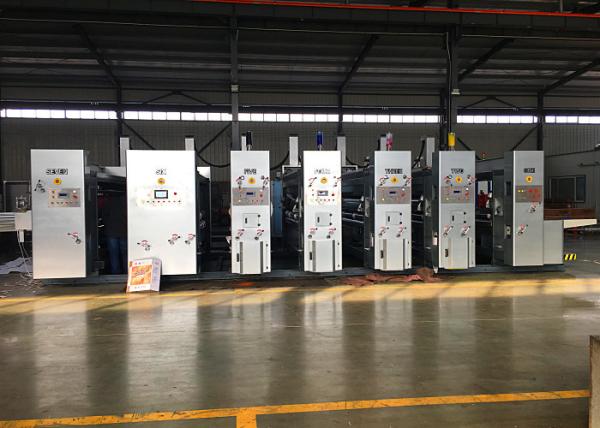

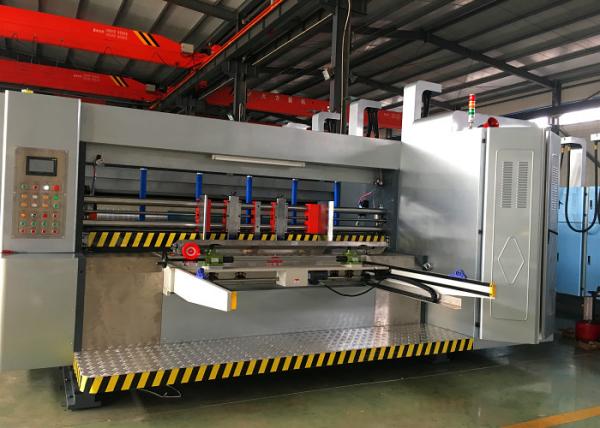

The machine real picture ( all computer control Slotting department )

Model 2800 * 1600 mm Automatic Corrugated Flexo Printing Slotting Machine
