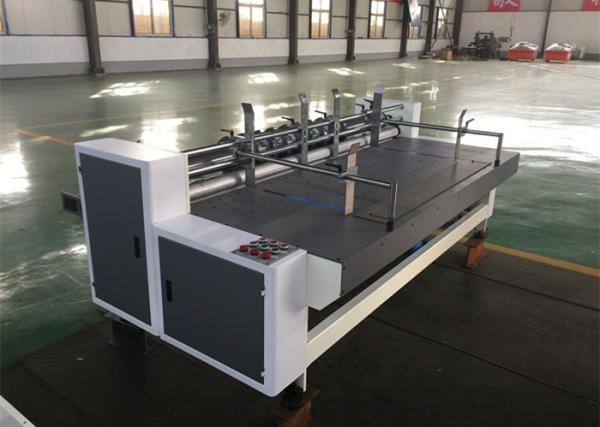

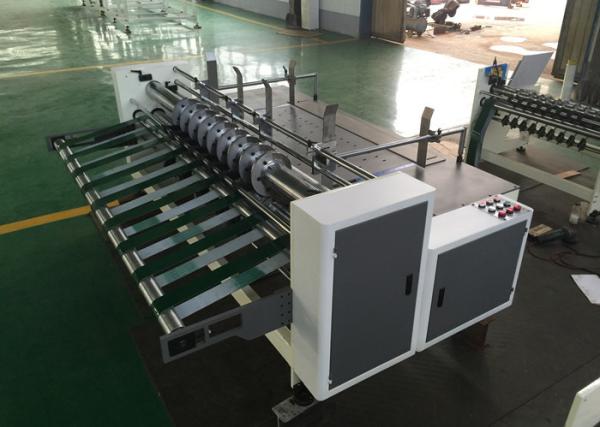

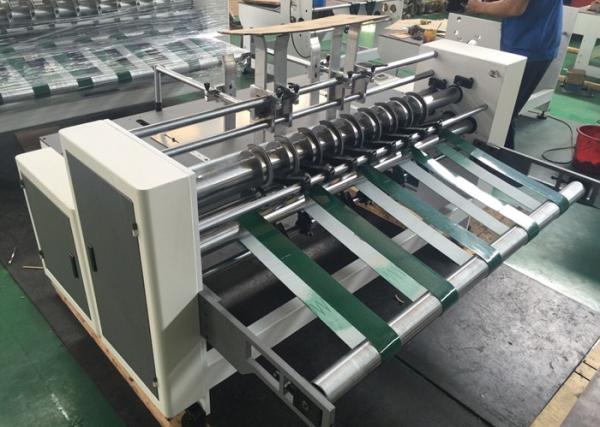

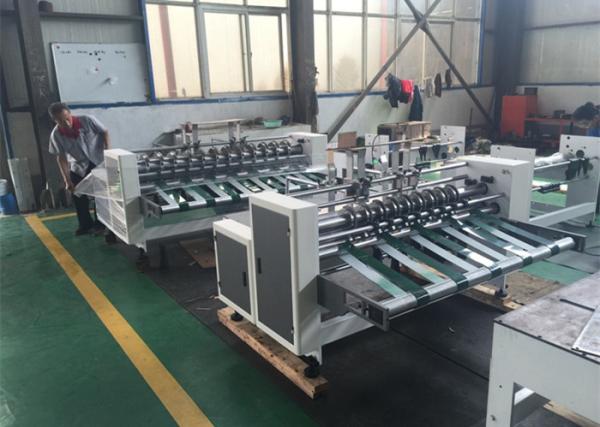

Kick Feeder Auto Carton Partition Machine / Clapboard Slotting Machine
Kick Feeder Auto Carton Partition Machine / Clapboard Slotting Machine
Kick Feeder Auto Carton Partition Machine / Clapboard Slotting Machine
Kick Feeder Auto Carton Partition Machine / Clapboard Slotting Machine
Kick Feeder Auto Carton Partition Machine / Clapboard Slotting Machine
Kick Feeder Auto Carton Partition Machine / Clapboard Slotting Machine
Kick Feeder Auto Carton Partition Machine / Clapboard Slotting Machine
Kick Feeder Auto Carton Partition Machine / Clapboard Slotting Machine
Specifications
Brand Name :
ZHAOLI
Model Number :
GBJ-1000 , GBJ-1200 , GBJ-1400 , GBJ-1500
Certification :
CE
Place of Origin :
HEBEI PROVINCE , CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
200 sets / year
Delivery Time :
7-10 days
Packaging Details :
plastic film packing and load to the container and fixed with steel wire rope or with steel packing
product name :
kick feeder auto carton partition machine
process width :
1000mm , 1200mm , 1400mm , 1500mm
working speed :
120 sheets/min
power supply :
can be cusotmized
warranty :
one year for whole structure , not including knives and rubber roller
blades number :
generally 9 slotting blades
Description

kick feeder auto carton partition machine

My factory produces the series of corrugated paperboard automatic clapboard slotting machine . It is made by many times and has many good characteristics such as the type with new and nice , beautiful and dignified , rolling smooth working fast , operation easy and so on . It is comparative with the same type machine , be improved four to five times . It also has slotting clearly without pulp , the size is exact and useful and so on good characteristics .

Technological Parameter :

Model GBJ-1000 GBJ-1200 GBJ-1400
Processing Range 1

Max 1000*300mm

Min 100*75mm

Max 1200*300mm

Min 100*75mm

Max 1400*300mm

Min 100*75mm
Processing Range 2

Max 1000*400mm

Min 100*90mm

Max 1200*400mm

Min 100*90mm

Max 1400*400mm

Min 100*90mm
Processing Range 3

Max 1000*600mm

Min 180*180mm

Max 1200*600mm

Min 180*180mm

Max 1400*600mm

Min 180*180mm
Min Slotting Size 45mm
Slotting Width

3.5mm 5mm 7mm

(choose one , according to the thickness of paperboard )
Working Speed 120 sheets/min
Shape Size 1750 * 1350 * 1220mm 1950 * 1350 * 1220mm 2150 * 1350 * 1220mm
Power 1.1 kw
Power Supply 380V/50Hz/3 phase or as customer’s wish
The Number Of Knives 9 knives in standard
