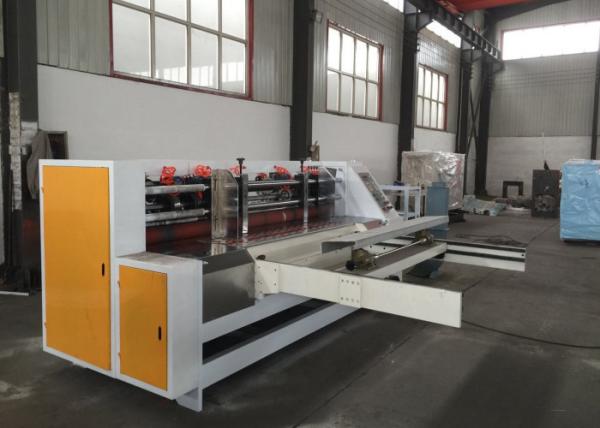

Auto Feed Thin Blade Slitter Scorer For Corrugated Board Cutting
Auto Feed Thin Blade Slitter Scorer For Corrugated Board Cutting
Specifications
Brand Name :
ZL
Model Number :
2500
Certification :
CE
Place of Origin :
Hebei China
MOQ :
1 set
Price :
USD per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 sets per month
Delivery Time :
25 days
Packaging Details :
plastic film packaging and fixed in the container
Color :
Customized
Driven type :
Electric driven
Voltage :
220v or 380v
Power :
3 kw
Numbler of slitter :
4 or 5
Number of creaser :
6 or 8
Description

Auto Feed Thin Blade Slitter Scorer For Corrugated Board Cutting

Description:

This machine is to slitting the board and make creasing. It is improved with lead edge feeding system, the original type is manual feeding, this will same time and labor. Standard model is 2000mm, 2200mm, 2500mm, but we can make as your requirement. It is a good machine for box making industry. It can cut the board to the size you want.

Main specification:

Model 2000 2200 2500
Max feeding 1900mm 2100mm 2400mm
Min feeding size 130x450mm 130x450mm 130x450mm
Speed 60-120 pcs/min 60-120 pcs/min 60-120 pcs/min
Power 3 kw 3 kw 4 kw
Weight 1500kg 1600kg 1700kg

Main features:

1. Lead edge vacuum suction feedig system.

2. creasing device: the upper and lower roller use thick steel pipe, grinding, hard chrome plated.

3. Slitting device: the blade is alloy steel, the grinding wheel is diamond material, auto and manual grinding the knife, the blade is sharp.

4. It cut the board well, has long using life.

5. The output roller is rubber, make the paper out stable.

Auto Feed Thin Blade Slitter Scorer For Corrugated Board Cutting
