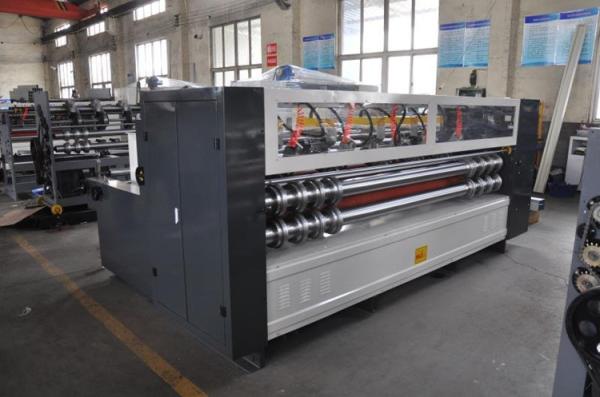

automatic feeding electric adjustable thin blade machine

Main application features: automatic feed department: cardboard size adjustment adopts screw adjusting mechanism, one operator, simple quickly.
Easy adjustable size paper structure, better adapt to all kinds of cardboard length, and paper stability accurately.

Into the belt is made of high quality import rubber seamless belt, high friction, long life.
Cutting department: BFY - 8 series thin knife cutting creasing machine adopts thin knife cutting, sharp blade after grinding wheel grinding, make the cutting board edge finishing, minimal crushed phenomenon, improve the appearance quality of cardboard and cardboard printing after overall quality especially in feed, and thus to minimize waste and improve the quality of the carton.
Whet knife adopts two methods of manual and automatic switch, can choose according to time or cardboard speed sharpened his time, and stop keep sharp blade, cutting paper smooth and tidy.
* electric adjustment blade distance, pneumatic automatic locking fixation. Manually adjust the press line width.
The single-pole independent tool structure, can switch according to cardboard cutting quantity;
The machine for different wear program knife dish of xiaoke any adjustments.
Features: the shaft with glue paper, after cutting, roller, paper again, the last line pressing forming, after using process can be clear when indentation depth, cutting and using alloy paper knives, and drive the blade synchronous belt drive, when replacing the blade can be quickly set in, shaft with glue paper, take paper higher than a year to the same equipment.

The main technical parameters:

1 Machine maximum slitting board width: 2300mm

2 Maximum mechanical speed: 120m/min

3 Number of paper cutters: (can be increased or decreased according to user requirements) 5

4 Number of crimping wheels: (can be increased or decreased according to user requirements) 8 pairs

5 Minimum slit width: 140mm

6 Minimum line width: 55mm

7 thin paper blade outer diameter: 200mm

8 Thin paper blade thickness: 1.3mm (alloy)

9 Main motor power: 5.5kw speed regulation

Fan power: 3.4KW

10 Pneumatic pressure: <0.4mpa

11 Machine Dimensions: 3200×2100×1500mm

12 Machine weight: 2500kg

13 Minimum paper feed: (two rubber wheelbase) 320mm
