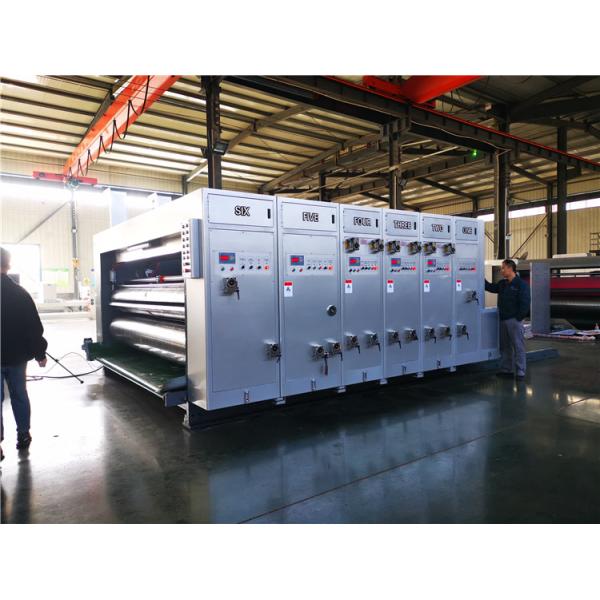

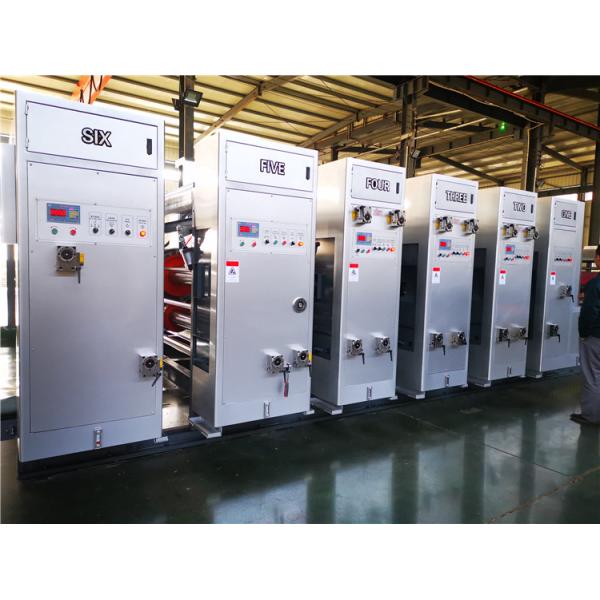

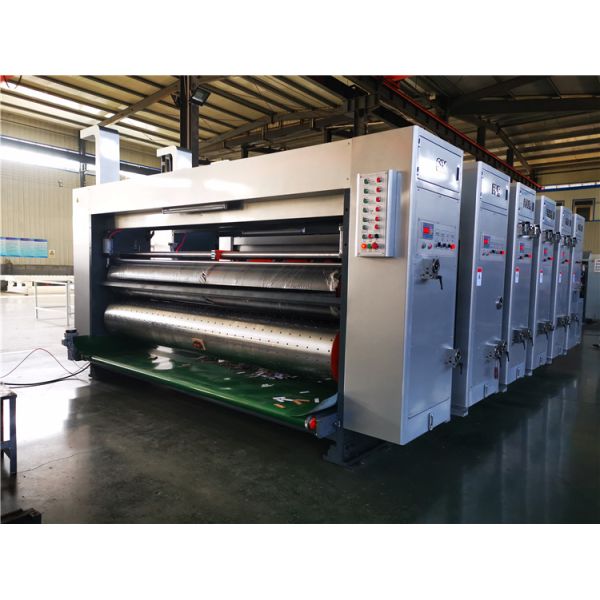

Corrugated Carton Box Printing Rotary Die Cutting Machine Automatic Feeding
Corrugated Carton Box Printing Rotary Die Cutting Machine Automatic Feeding
Specifications
Brand Name :
ZHAOLI
Model Number :
GYK-B
Certification :
CE certificate
Place of Origin :
china
MOQ :
1set
Price :
USD 20000-30000set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
15sets per month
Delivery Time :
40 days after received deposit
Packaging Details :
plastic film for main parts, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixed with container.according to customer requirements. according to customer requirements.
product name :
automatic feeding corrugated carton box printing rotary die cutting machine
speed :
100pcs/min
feeding type :
continuous feeding
feeder :
lead edge feeder
color :
grey
After-sales service provided :
Engineers available to service machinery overseas
Automatic grade :
Automatic
Description

Automatic Feeding Corrugated Carton Box Printing Rotary Die cutting Machine

Introduction:

1. Lead edge feeder:

a Suction feeder. Fan: 7.5 kw. Suction assisted paper feeding. The air volume controlled by frequency and can be adjusted according to the camber of the paperboard to keep feeding smoothly.

b four rows feeding wheels. Adopt Taiwan brand.

c Left and right baffle driven by screw rod electrical adjustment, fast and easy operate.

d Up and down clearance of front baffle manually adjust independent.

e Host adopt frequency control, start and running stable, save 30% energy.

f There is interlock control clutch with die-cutting unit, to realize sudden stop, stop feeding and recover feeding, and every units jog.

g Back baffle adjustment manually.

h Paper skip feeding device. (It can feed skipped or continuously). Lift paper and drop paper adopt cylinder to promote movement.

i Feeding counter, which set and display the production quantity.

K dust clean device.

2. Separation and combination of the machine:

a Control of separation and combination of machine units is electrically, with alarm to keep the safety of

operating personnel.

b There is safe clutch on the transmission shaft, to avoid damage to the machine when mis-operation(the host can not work when unlock.)

c Pneumatic interlock device.

d Host motor start protect device.

3. Roller of feeding paper:

a Outer diameter of up roller : Φ155mm. Seamless steel, covered with bearing rubber and treated with balance correction.

b Outer diameter of down roller: Φ155mm. Hard chrome-plated.

c Feeding roller clearance dial adopt bipolar self-locking worm gear body adjusted manually. Use

eccentric gear to adjust clearance, with scale.

Technology Parameter:

Model 1450x2800 1200x2400
Working speed 120pcs/min 120pcs/min
Max feeding size 1450x2800mm 1200x2400mm
Min feeding size 380x750mm 380x750mm
Max printing size 1450x2600mm 1200x2200mm
Printing plate thickness 4mm 4mm
Wallboard thickness 40mm 40mm

Corrugated Carton Box Printing Rotary Die Cutting Machine Automatic Feeding

Corrugated Carton Box Printing Rotary Die Cutting Machine Automatic Feeding

Corrugated Carton Box Printing Rotary Die Cutting Machine Automatic Feeding

Company:

Corrugated Carton Box Printing Rotary Die Cutting Machine Automatic Feeding

Corrugated Carton Box Printing Rotary Die Cutting Machine Automatic Feeding

Corrugated Carton Box Printing Rotary Die Cutting Machine Automatic Feeding
