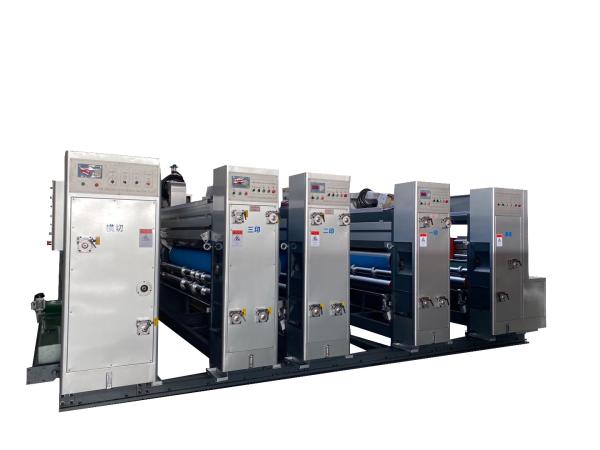

high speed flexo printer slotter machine for corrugated carton box making

Introduction:

1. Lead edge feeder:

a Suction feeder. Fan: 7.5 kw. Suction assisted paper feeding. The air volume controlled by frequency and can be adjusted according to the camber of the paperboard to keep feeding smoothly.

b four rows feeding wheels. Adopt Taiwan brand.

c Left and right baffle driven by screw rod electrical adjustment, fast and easy operate.

d Up and down clearance of front baffle manually adjust independent.

e Host adopt frequency control, start and running stable, save 30% energy.

f There is interlock control clutch with die-cutting unit, to realize sudden stop, stop feeding and recover feeding, and every units jog.

g Back baffle adjustment manually.

h Paper skip feeding device. (It can feed skipped or continuously). Lift paper and drop paper adopt cylinder to promote movement.

i Feeding counter, which set and display the production quantity.

K dust clean device.

2. Separation and combination of the machine:

a Control of separation and combination of machine units is electrically, with alarm to keep the safety of operating personnel.

b There is safe clutch on the transmission shaft, to avoid damage to the machine when mis-operation(the host can not work when unlock.)

c Pneumatic interlock device.

d Host motor start protect device.

3. Roller of feeding paper:

a Outer diameter of up roller : Φ155mm. Seamless steel, covered with bearing rubber and treated with balance correction.

b Outer diameter of down roller: Φ155mm. Hard chrome-plated.

c Feeding roller clearance dial adopt bipolar self-locking worm gear body adjusted manually. Use eccentric gear to adjust clearance, with

scale.

Technology:

Package:

plastic film for main parts, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixed with container.according to customer requirements. according to customer requirements.
