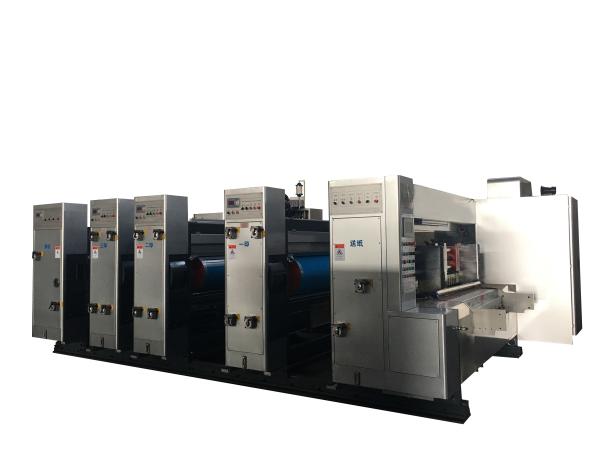

automatic feeding flexo printer slotter machine corrugated box printing machine

Introduction:

1. Lead edge feeder:

a Suction feeder. Fan: 7.5 kw. Suction assisted paper feeding. The air volume controlled by frequency and can be adjusted according to the camber of the paperboard to keep feeding smoothly.

b four rows feeding wheels. Adopt Taiwan brand.

c Left and right baffle driven by screw rod electrical adjustment, fast and easy operate.

d Up and down clearance of front baffle manually adjust independent.

e Host adopt frequency control, start and running stable, save 30% energy.

f There is interlock control clutch with die-cutting unit, to realize sudden stop, stop feeding and recover feeding, and every units jog.

g Back baffle adjustment manually.

h Paper skip feeding device. (It can feed skipped or continuously). Lift paper and drop paper adopt cylinder to promote movement.

i Feeding counter, which set and display the production quantity.

K dust clean device.

2. Separation and combination of the machine:

a Control of separation and combination of machine units is electrically, with alarm to keep the safety of operating personnel.

b There is safe clutch on the transmission shaft, to avoid damage to the machine when mis-operation(the host can not work when unlock.)

c Pneumatic interlock device.

d Host motor start protect device.

3. Roller of feeding paper:

a Outer diameter of up roller : Φ155mm. Seamless steel, covered with bearing rubber and treated with balance correction.

b Outer diameter of down roller: Φ155mm. Hard chrome-plated.

c Feeding roller clearance dial adopt bipolar self-locking worm gear body adjusted manually. Use eccentric gear to adjust clearance, with

scale.

Printing unit:

1. Printing roller:

a Outer diameter: 360Φmm (include version 410mm)

b Steel material, surface of roller is grind and hard chrome-plated.

c Treated with balance correction, runs steady and smoothly.

d Printing roller crosswise adjust manually, adjust range 2-5mm.

2. Printing pressure roller

a Outer diameter: Φ175mm.

b Steel pipe material, surface of roller is grind and hard chrome-plated.

c Treated with balance regulating, runs steady and smoothly.

d Printing pressure roller clearance dial adopt bipolar self-locking worm gear body adjusted manually. use eccentric gear to adjust clearance, with scale.

3. Steel anilox roller

a Outer diameter: Φ215mm.

b Surface of steel pipe adopt advanced electroplating process, hard, smooth and wear resistant.

c Mesh spot coincident, inking uniform.

d Extend the life of plates and rubber rollers.

e Clearance dial adopt bipolar self-locking worm gear body adjusted manually. use eccentric gear to adjust clearance, with scale.

4. Rubber roller:

a Outer diameter: Φ205mm.

b Surface of the steel pipe is covered with wear-resistant rubber.

c Rubber is medium-high grade special grind. Ink transfer well.

5. Up and down feeding roller:

a Upper roller: outer diameter: Φ86mm, attached with 4 feeding wheels.

b Lower roller: outer diameter: Φ155mm,seamless steel pipe, the surface is grind and hard chrome plated.

c Paperboard feeding roller clearance dial adopt bipolar self-locking worm gear body adjusted manually. use eccentric gear to adjust clearance, with scale.

• Phase adjust:

a Planet gears structure.

b Printing phase adjust adopt text integration microcomputer digital in 360° . (It can be adjusted when running or stopping.)

c Lateral width is adjusted manually. Total adjusting range is: ±5mm.

d Printing roller adopt Text integration microcomputer to adjust phase.

• Water ink circulating:

a Pneumatic diaphragm pump. It is steady to supply ink and easy to operate.

b Printing ink filter screen to filter out impurities.

8. Printing phrase fixing device

a Pneumatic brake mechanism.

b Brake device will stop running of machine when each sections separate or adjust phrase. It can keep gears at origin location.
