Fully Automatic Corrugated Box Flexo Printing And Die Cutting Machine
Fully Automatic Corrugated Box Flexo Printing And Die Cutting Machine
Fully Automatic Corrugated Box Flexo Printing And Die Cutting Machine
Fully Automatic Corrugated Box Flexo Printing And Die Cutting Machine
Specifications
Brand Name :
Zhaoli Brand
Model Number :
1600 X 2800 MM
Certification :
CE Certification
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiatioin
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5 Set Per Month
Delivery Time :
45- 60 Days
Packaging Details :
Plastic Packing , Loading Container
Machine name :
Automatic feeder flexo Printer Slotter Die Cutter Machine
Max Feeding area :
1600 X 2800 mm
Min Feeding area :
350 X 600 mm
Max Printing Area :
1600 X 2600 mm
Printing Precision :
±1
Slotting Precisioin :
±1
Machine Wallboard Thickness :
50 mm
Thickness of paperboard :
3 - 11 mm
Description

Fully Automatic Corrugated Box Flexo Printer Slotter Die Cutter Machine / Carton Box Making Machine

@ Machine Features

1 , The main electrical appliances of the whole machine are French Schneider and German Siemens product .

2, Adopting helical gear driving , the gears are made from high frequency quenching and polishing - gear.

3 , All the axles of roller must be chorme - plating in order to increase the hardness .

4 , The gear adopts shower type circular lubricating ,

5 , The machine PLC touch screen adopt international brand .

6, Automatically changes reture zero and correct the plate position .

7 , Adopting the mould unit designing . The multi- colors printing unit can be combined and linked in any way .

8 , The side baffle plate of the feeding department and the grooving department are adjust by PLC electrically .

9 , Man - machine interface , computer saving order .

@ , Automatic Flexo Printer slotter die cutter machine main paramete

Machine specification 1600 X 2800 mm
Max machine speed 150 pcs / min
Machine wallboard thickness 50 mm
Max Feeding size 1600 X 2800 mm
Min Feeding size 350 X600 mm
Max Printing size 1600 X 2600 mm
Printing Precision ±1
Slotting Precision ±1
Standard plate thickness 7.2 mm
Thickness of printing paperboard 3-11 mm
Max Slotting Depth 300 X 100 X 300 X 100 mm
Printing roller adjustment 360 degreee rotation
Printing left and right movement ±5

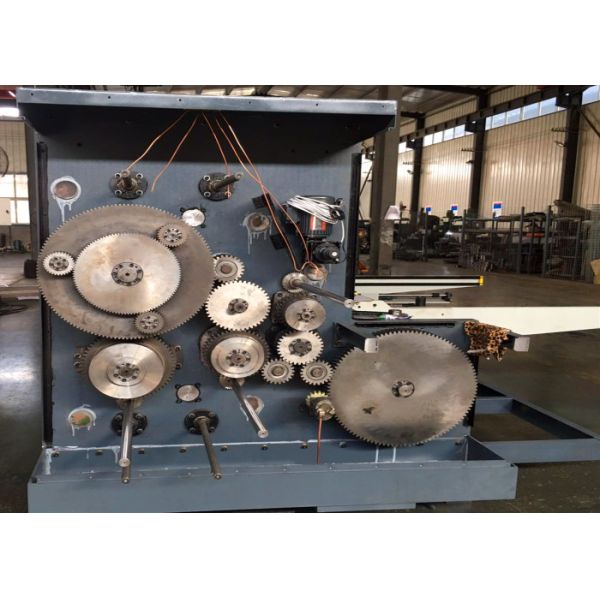

@ , Automatic Feeder Printer Slotter Die Cutter Machine Real Picture In Workshop (Main Gears is 80 mm thickness )

Fully Automatic Corrugated Box Flexo Printing And Die Cutting Machine

If you are interested in the mchine , welcome to contact with me !to get more pictures , videos , and details information of the machine .
