Hydraulic Mill Roll Stand Machine For Paper Roller Corrugated Production Line
Hydraulic Mill Roll Stand Machine For Paper Roller Corrugated Production Line
Hydraulic Mill Roll Stand Machine For Paper Roller Corrugated Production Line
Hydraulic Mill Roll Stand Machine For Paper Roller Corrugated Production Line
Specifications
Brand Name :
Zhaoli
Model Number :
1400 mm
Certification :
CE Certification
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets Per Month
Delivery Time :
20 - 30 Days
Packaging Details :
Plastic Packing . The whole machine is wrapped PE film And Load into Container And Fix Well
Machine Type :
Hydraulic
Diameter Max :
2200 mm
Diameter Min :
350mm
Pneumatic Source Pressure :
0.4---0.8Mpa
Max width :
2200 mm
Min width :
1000mm
Description

Hydraulic Mill Roll Stand Machine For Paper Roller Corrugated Production Line

1 Product Description

Symmetrical structure, can carry two craft paper at one time, which can work without brake.

Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic

pressure. feeding craft / reel paper quickly.

Brake: pneumatic brake

Double Level Auto Expander, Expander head:3/4 inch Double Level.

Specifications of stand:

1,Reel Stand driven by hydraulic

2,Kfat paper range

Width: Max:2200mm Min:1000mm

Diameter:Max:1500mm Min:350mm

Max Weight:2500Kg(One side)

3,Main roller dia:215mm

4,Pneumatic Source Pressure(MPA):0.4---0.8Mpa

5,Power: 380V 50Hz

Specifications of hydraulic system:

1Working Pressure(MPA):16---18Mpa

2Hydraulic Cylinder Range(Lift/Down):110×440mm

3Hydraulic Cylinder Range(Clamp/Loosen):80×800mm

4Hydraulic Station Motor Power:4KW Short Time(S2) Working Type Nominal voltage:380V 50Hz

5 Hydraulic Station Electromagnetic Valve Working Power:220V 50 Hz

2 Machine main date of technology

Machine type hydraulic
Width Max 2200 mm
With Min 1000mm
Diameter Max 1500 mm
Diameter min 350 mm

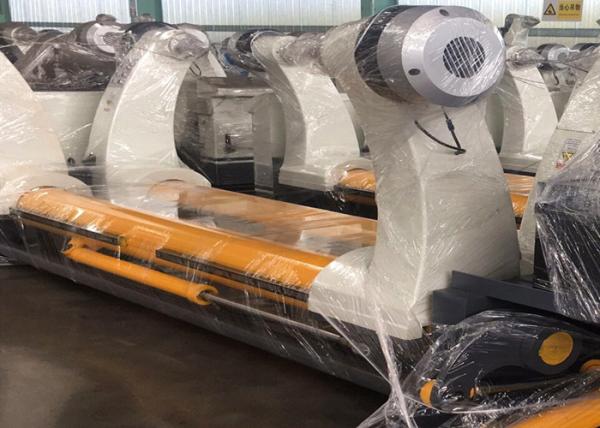

3 Machine main details picture ( Machine workshop )

Hydraulic Mill Roll Stand Machine For Paper Roller Corrugated Production Line
