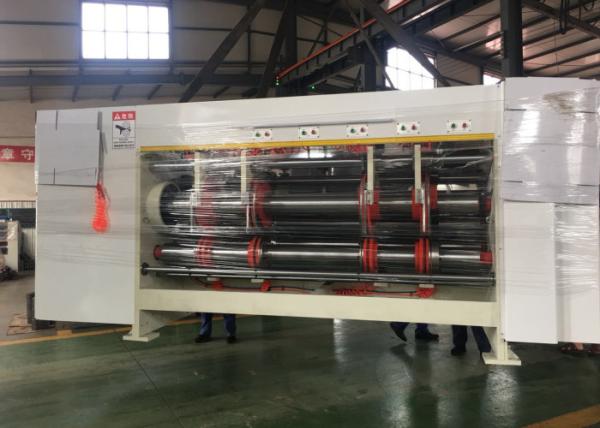

Automatic Adjust Rotary Slotter Machine For Corrugated Cardboard
Automatic Adjust Rotary Slotter Machine For Corrugated Cardboard
Specifications
Brand Name :
ZL
Model Number :
1400x2800
Certification :
CE
Place of Origin :
Heibei China
MOQ :
1 set
Price :
USD per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 sets per month
Delivery Time :
30 days
Packaging Details :
plastic film packaging and fixed in the container
Color :
Customized
Voltage :
220v or 360v or as you request
Main power :
7.5kw
Speed :
about 120 pcs/min
Max feeding :
1350x2800mm
Min feeding :
400x600mm
Description

Automatic Adjust Rotary Slotter Machine For Corrugated Cardboard

Description:

1. The main control panel is controlled by screen and button, reliable and convenient.

2. The machine start is controlled by double button, to ensure the safety of worker and machine.

3. This machine can feed continuously or skip feed( it has counter)

4. There is counter in the feeder and you can see the production on the screen

5. The side baffle is adjusted electrically.

6. The transmission of the roller adopt bearing oldham coupling, reduce the wearing and make the transfer stale.

7. The machine clutch is electric, with alarm light, to ensure the safety of worker.

8. Transmission shaft is with friction clutch, to protect the motor when you do some wrong operation.

9. Automatic back to zero.

Slotting unit

1. Upper slot shaft is φ156mm, lower slot shaft is φ156mm, up an down pressing roller is 110mm, with helical waste slot to remove the dust.

Single shaft double slot, one lead screw, to make the movement flexible and accurate.
2. The four blades adjust the box height synchronously and electrically, adopt internal tooth structure, the lubricating oil will not dirty the box.
3. The thickness of the slot blades is 7mm, after heat treatment and grinding, double edge cutting knife, the blade is sharp and high degree of precision.
4. The slot phase adopts PLC touch screen control and electric 360°adjustment.
5 The axial direction of upper and lower slot shaft, up and down pressing roller is adjusted synchronously an electrically. The lower slot shaft adopts pneumatic lock.

Main specification:

Model 1400x2800
Max feeding size 1350x2800mm
Min feeding size 400x600mm
Working speed 130 pcs/min
Thickness of the board 2-11mm
Thickness of the wall 50mm
Main power 7.5kw

Automatic Adjust Rotary Slotter Machine For Corrugated Cardboard
