Automatic Corrugated Water Ink Flexo Printer Slotter Die Cutter For Carton Box
Automatic Corrugated Water Ink Flexo Printer Slotter Die Cutter For Carton Box
Automatic Corrugated Water Ink Flexo Printer Slotter Die Cutter For Carton Box
Automatic Corrugated Water Ink Flexo Printer Slotter Die Cutter For Carton Box
Specifications
Brand Name :
Zhaoli Brand
Model Number :
2300 X 900 mm
Certification :
CE Certification
Place of Origin :
China
MOQ :
1 Set
Price :
USD 20000- 50000 Per Set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
50 Work Days
Packaging Details :
Plastic Packing , PE film With Whole Machine Loading into Container and Fixed Well
Machine name :
Automatic Corrugated Carton Box Printer Slotter Machine
Machine body thickness :
50 mm
Machine speed :
200 pcs / min
Max Feeder size :
2300 X 900 mm
Min Feeder size :
600 X 230 mm
Min Height of Box :
115 mm
Description

Carton Box Automatic Corrugated Water Ink Printer Slotter Machine

1 Machine Function and Features

(1) The machine body thickness is 50 mm , Cast iron . Ensure the machine whole body solid .

(2) The machine side baffle and the front of baffle all adjust by electrical .

(3) Automatic feeder with vacuum suction , make sure the machine smoothly input and output corrugated carton board .

(4)The machine have alalrm Light , when the work disoperate , the alarm will twinclk . the whole machine will stop , ensure the worker safe .

(5) The machine have dust function and make corrugated board clean .

(6) The anilox roller , using famous brand . Dali place , also can as clients requiremets . The roller through high frequency quencing .The hardness is suitable for this machine .

(6)The anilox roller , have 200 mesh , 220 mesh and 250 mesh . it is arranged by customers .

(7) The machine have hange printer plate function with feet switch .

(8) The printer roller , the guide paperboard roller all used high quality , the material all stealess steel tube .

(9) The Machine have order storage function .

(10)PLC control the machine , big screen .

(11) The machine electrical component all use high quality brand , such as schenider , simens and so on .

(12) The machine have balance power finction amd this machine is planetary gear struction .

(13 ) Electrical adjust the phase and height of carton box . it is easy to operate .

(14) you also can choose die cutter unit , stacker unit .

2 Printer Slotter Machine Main Parameter

Machine Model 2300 X 900
Machine speed 200 pcs / min
Max Fedding area 2300 X 900 mm
Min Feeding Area 600 X 230
The printer roller length 2200 mm
The slot space 230 X 60 mm
The height of carton box 115 mm

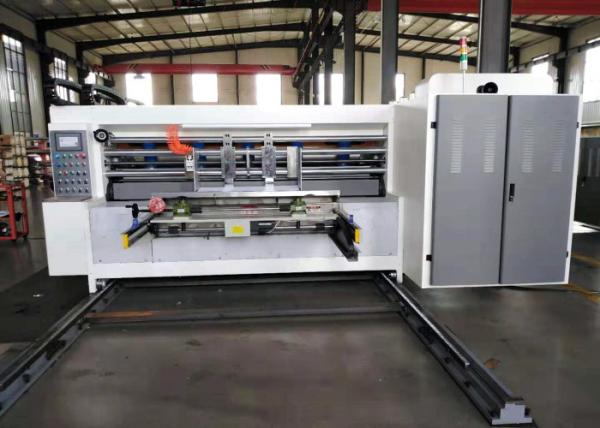

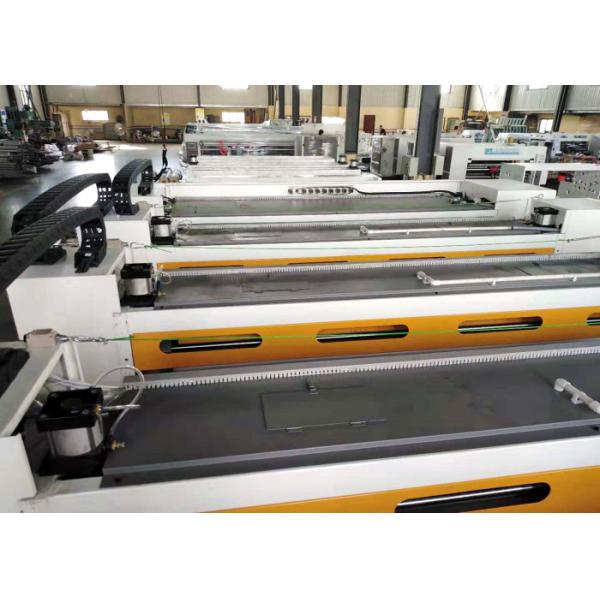

3 Printer Slotter Machine detail picture( the above of printer slotter machine )

Automatic Corrugated Water Ink Flexo Printer Slotter Die Cutter For Carton Box
