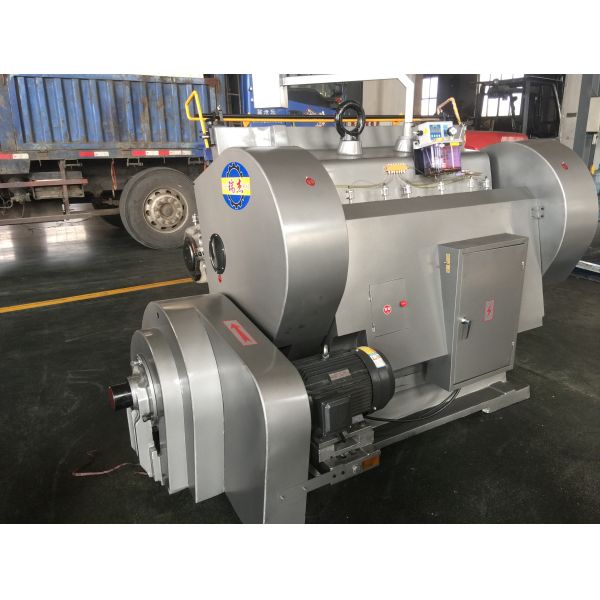

Industrial Carton Flat Die Cutting Machine For Cutting Cardboard
Industrial Carton Flat Die Cutting Machine For Cutting Cardboard
Specifications
Brand Name :
zhaoli
Model Number :
ZL1200mm
Certification :
CE
Place of Origin :
HEBEI CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
50set per month
Delivery Time :
15 days after get diposit
Packaging Details :
plastic fit the ocean shipment
Name :
flat die cuter
color :
gray
model :
1200mm
speed :
25pcs/min
Description

Semi Auto Carton Flat Die Cutting Machine For Cutting Cardboard


Specification

Model Inner chase size
(mm)		 Speed
(strokes/min)		 Max.rule length(m) Motor power Overall dimension
(mm)		 Machine weight
(kg)
ML750 750X520 25±2 ≤15 2.2kw-6H 380V 1500x1320x1600 2000
ML930 930x670 23±2 ≤25 3kw-6H 380V 1700x1550x1700 3000
ML1040 1040x720 20±3 ≤30 4kw-6H 380V 1760X2000X1750 3500
ML1100 1100X800 22±2 ≤30 4kw-6H 380V 2050x2030x1700 4000
ML1200 1200x820 22±2 ≤35 4kw-6H 380V 2150x2030x1700 4500
ML1300 1300x920 15±2 ≤40 5.5kw-6H 380V 2400x2100x1950 5600

Main structural features:

1. The sliding bearing is made of high quality cast copper alloy, which is wear-resistant and vibration-damping.

2. The flywheel has a large torque and a large cutting force.

3. The fuselage is cast in high quality material with high strength and rigidity.

4. The one-piece electromagnetic clutch is sensitive and reliable.

5. It has three functions of single chip cutting, continuous pressure cutting and opening delay, and the delay range can be adjusted freely.

6. The operating height is designed reasonably, and the pressure frame has a large opening angle.

7. The centralized lubrication system ensures good lubrication and reduces wear.

8. The safety protection system is reliable.

Industrial Carton Flat Die Cutting Machine For Cutting Cardboard
