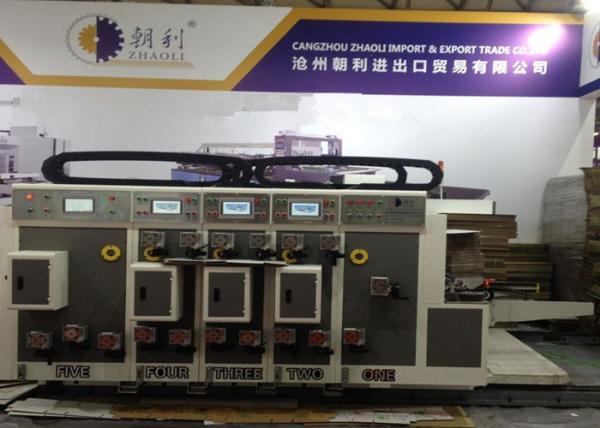

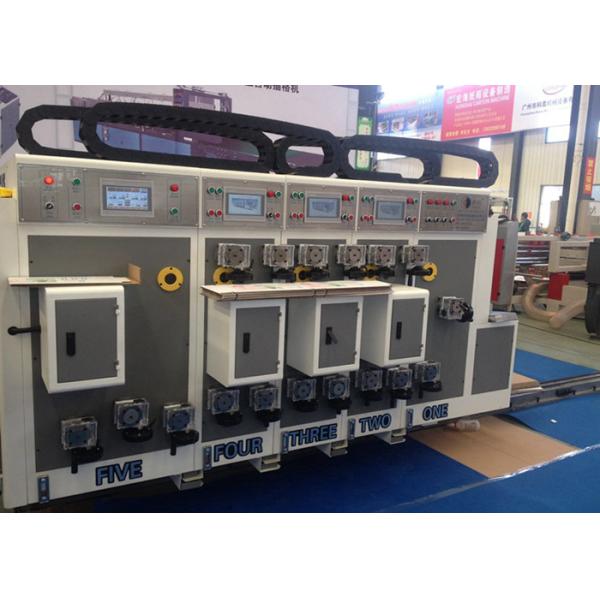

Carton Corrugated Flexo Printer Slotter Machine Auto Independent Lead Edge Feeding
Carton Corrugated Flexo Printer Slotter Machine Auto Independent Lead Edge Feeding
Specifications
Brand Name :
Zhaoli
Model Number :
270
Certification :
CE
Place of Origin :
China
MOQ :
one
Payment Terms :
L/C, T/T
Supply Ability :
One set per 30 days
Delivery Time :
One week
Packaging Details :
Plastic
Printing roller diameter :
258.6mm
Anilox roller diameter :
273mm
Rubber roller diameter :
160mm
Slotted knife width :
7mm
Slotted phase :
360 adjustment
Shaft diameter :
156mm
Description

Carton Corrugated Auaomatic Independent Lead Edge Feeding Printer Slotter Machine

1. This machine wallboard thickness 40mm,gear thickness 50mm,adopt 40CrMnTi steel forging piece,treated with tempering and grinding,hardness can reach to 45-48HRC after high-frequency quenching.Whole machine is equipped with vacuum adsorption assistance,lead edge feeding system which is capable to accomplish the whole process of cardboard printing,slotting and die cutting,etc.The computer control unit is adjusted by multi-group communication computer, and the host computer adopts large screen PLC unified control system, which can independently control the paper feeding department, printing department, slotting part, die cutting unit and printing plate roll with hanging plate zeroing device, and equipped with foot switch.

2. Double creasing wheel and pre-creasing slotting unit,electric adjustment slotting depth and 360°phase.Slotting knife plate,creasing wheel and pre-creasing wheel left and right movement is screw shaft electric inching movement adjust and equipped with a scale reading device.The slotted phase adjustment mechanism is a planetary gear structure. The minimum 200mm of the paper base of the driving shaft of the whole machine can achieve the minimum 210mm cardboard pass.

3. Remarks Optional:Die cutting unit optional with slotting knives attachment.

Model 2600
Speed 150 pieces/min

Width of printing roller

 2000mm

Max feeding size (L * W)

2100mmX800mm

Min feeding paper size (L * W)

600mmX210mm

Min slotting space

230mmX60mmX230mmX60mm
